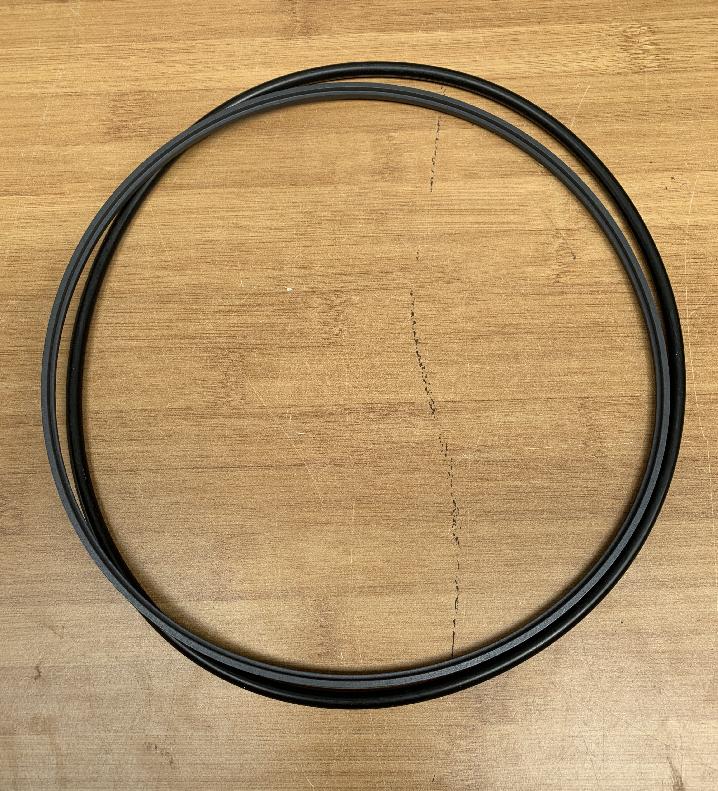

Grove 7794000565 - BUFFER SEAL ASS

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7794000565, 07794000565, 007794000565

Parts for Grove RT 540E, Figure 6372100377:
Part Number 7794000565: BUFFER SEAL ASS

Pos nr	Part number	Description	Weight in kg
	7755021002	O-RING	0.023
	7755906002	O-RING	0.045
	7755904002	O-RING	0.005
	7755916002	O-RING	0.002
	7199100022	BUSHING, LINER
	7199100024	BUSHING, UNER
1	6372100378	BARREL, CYLINDER
2	7701100418	PISTON	321.500
3	7099000378	SET SCREW	7.940
4	7794000566	SEAL	0.450
5	7753000746	RING	0.130
6	7754000203	O-RING, LOW TEMPERATURE	0.030
7	7753100022	BACK-UP RING;8.00 ROD	0.012
8	6768100271	ROD, CYLINDER	170.500
9	7372100269	HEAD, CYLINDER	170.500
10	7753000282	PISTON WEAR RIN	16.800
11	7754000151	LOW TEMP "O" RI	0.035
12	7755448609	RING, BACK-UP	0.016
13	7794000565	BUFFER SEAL ASS	0.050
14	7794000709	8.00" DIA DEEP	0.450
15	7753000484	WIPER RING	0.098
16	7926100925	VALVE ASSEMBLY - HOLDING	17.300
18	7709000031	PLUG O RING	0.032
19	7709000028	PLUG 721-FSO-1/4"	0.160
20	7755445609	BACK UP RING	0.014
21	7447161601	STRAIGHT THREAD	0.280
22	7910101451	TUBE ASSY, LIFT CYLINDER
23	7300000269	CLAMP, PIPE
24	1147202	HEXAGON SOCKET HEAD CAP SCREW
25	1571750	SUPPORT RAIL NUT	0.030
26	7115184050	CAPSCREW,
27	7949000235	WASHER 1/2 ID	0.006
28	7447161603	ELBOW, 90 DEGREE MALE	0.252
29	7440000000	GREASE NIPPLE	0.006
30	6705171137	PLATE, RETAINING
300	9752100863	KIT, REPAIR	1.416
