6512100837 (Grove RT 540E )
6512101098 (Grove RT 540E )
6512101099 (Grove RT 540E )
6512100805 (Grove RT 875E )
80037283 (Grove RT 880E )
80037283 (Grove RT 890E )
80027505 (Grove RT 9150E )

Also known as:
7892100026, 07892100026, 007892100026

Parts for Grove RT 540E, Figure 6512101098:

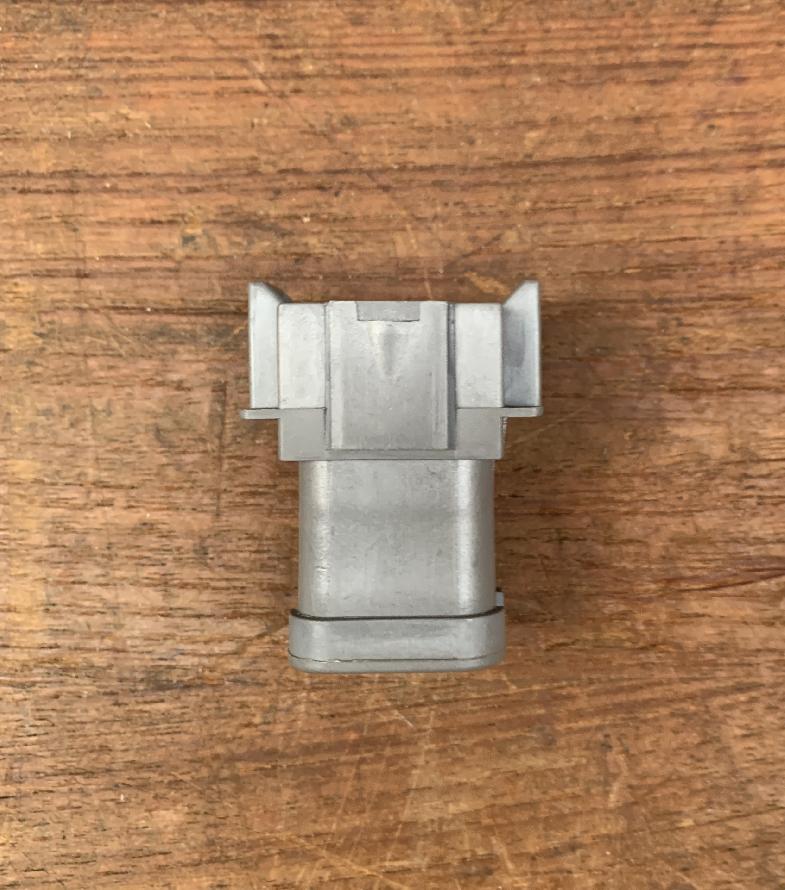

Part Number 7892100026: RECEPT, (8P) SPLICE BLOCK

Pos nr	Part number	Description	Weight in kg
6	7826100004	SOCKET CONTACT	0.010
7	7826000087	SOCKET CONTACT	0.010
8	7826000626	SOCKET CONTACT	0.005
9	7709000844	PLUG	0.027
10	7172000545	BOOT PLUG	0.008
11	7709000845	PLUG	0.034
12	7172000550	BOOT
13	7892100026	RECEPT, (8P) SPLICE BLOCK	0.050
14	7709000846	PLUG, 12 SOCKET	0.059
15	7172000552	BOOT	0.014
16	7892001036	RECEPTACLE, SPLICE BLOCK	0.026
17	7892000949	RECEPTACLE	0.006
18	7689000503	PLUG SEAL	0.005
19	7364001683	CONNECTOR, 2 CONDUCTOR SHF	0.050
20	7892000257	TERMINAL, GREEN CAVITY	0.005
21	7364001682	CONNECTOR, 2 CONDUCTOR TOV	0.008
22	7892000253	TERMINAL, FEMALE SLEEVE	0.005
23	7892000254	TERMINAL, GREEN CABLE SEAL	0.100
24	7709000874	PLUG 3 SOCKET	0.010
25	7172000547	BOOT
26	7892000978	RECEPTACLE	0.045
27	7345001444	TERMINAL, FEMALE	0.005
28	7345241901	TONGUE, INSULATED RING	0.001
29	7709000850	PLUG 24 SOCKET
30	7172000553	BOOT
31	7709000849	PLUG 40 SOCKET
32	7172000554	BOOT
35	7892000979	SOCKET HOUSING	0.010
36	7689001883	PIN	0.008
37	7689002053	PIN (16-18) GOLD PLATED	0.005
38	7892100036	RECEPTANGLE, 3WAY DT04-3P-P007	0.085
39	7709100911	PLUG,DT06-3S-CE06 W/BLUE WEDGE
40	7709100902	PLUG, 3PIN	0.012
41	7689100044	PIN, 20GA GOLD
42	7689000704	PIN	0.02
44	7892000194	PARALLEL - NON-INSULATED
45	8594100256	TUBING, HEAT SHRINK 1/4" I.D.	0.010
46	7892000197	PARALLEL, NON - INSULATED
47	7892000195	PARALLEL - NON-INSULATED	0.005
48	7892000198	PARALLEL - NON-INSULATED 4 AWG
49	8594100257	H.S. TUBING - 1
50	7709100929	PLUG, DT06-12S8-0015 W/WEDGE	0.020
51	7709100930	PLUG, DT06-12SC-0015 W/WEDGE	0.025
54	7850000208	TIE, CABLE	1
56	7709100877	PLUG	0.008
57	7172000565	BOOT, CONNECTOR	50
58	7172100002	BOOT, PLUG	0.004
59	7892100010	RECP-DTM-3P
60	7826000650	PLUG SEAL	0.010
61	7892000951	RECEPTACLE	0.091
62	7709000883	PLUG	0.014
63	7172000551	BOOT
64	7709100895	PLUG, 4 SOCKET	0.008
65	7172000567	PLUG PROTECTIVE SLEEVE	0.006
66	7826100018	SOCKET, 20 GAUGE GOLD	0.005
67	7892100039	RECEPTACLE	0.015
68	8594000003	FLEXGARD -.625" I.D.	0.100
71	7364001846	TERMINAL
72	7892100025	DEUTSCH DTP 2-PASS RECEPTACLE	0.010
73	7689000797	PIN	12
74	7892000256	TERMINAL, BLUE CABLE SEAL	0.005
75	7709000936	PLUG	0.032
77	7892001051	RECEPTACLE	0.012
