Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

6246100244 (Grove RT 530E )
7246100345 (Grove RT 540E )
7246100378 (Grove RT 875E )
80027615 (Grove RT 9150E )

Also known as:
9246100168, 09246100168, 009246100168

BOOT, RED - Part 9246100168 for Grove cranes

Fits these models: Grove RT 530E, Grove RT 540E, Grove RT 875E, Grove RT 9150E

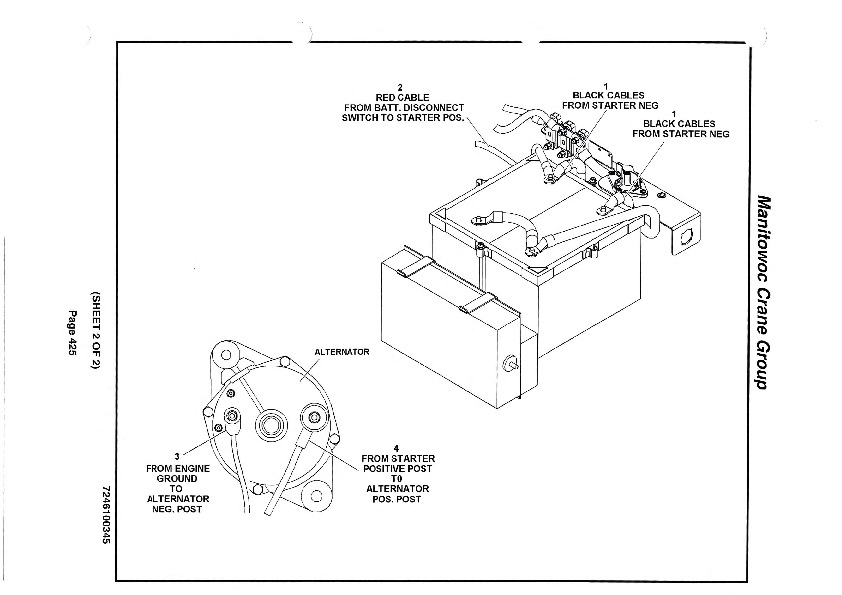

Figure 7246100345:

Pos nr	Part number	Description
	9246100159
	9246100168	BOOT, RED
	9246100177	BOOT, RED
	9246100185	BOOT, BLACK
1	7246100342	CBL-BLK 4/0 90" BAT-/START-
2	7246100343	CBL-RED 4/0 84"BAT DISC/START+
3	7246100186	CABLE-BLK 60"ENG GND TO ALT -
4	7246100145	CABLE-RED 1/0 42" (STR TO ALT)
5	7246100028	CABLE, BLACK
6	7246100198	CABLE-RED 1/0 36" (RLY/GRDHTR)
8	7246100276	CABLE-RED 6GA 48" STRTR/RELAY
9	7246100220	CABLE-RED 6GA 48" STRTR/RELAY
