Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT parts (Grove )
7974100044 (Grove RT 540E )
Also known as:
9974101216, 09974101216, 009974101216
Parts for Grove RT 540E, Figure 7974100044:
Part Number 9974101216: SEAL, OIL
Pos nr Part number Description Weight in kg
7755908002 O-RING 0.050
7755904002 O-RING 0.005
9974101280 KIT, SEAL 0.012
1 9974102861 CYLINDER, BRAKE 8
2 9974102176 SEAL, PISTON 0.052
3 9974102177 PLATE, PRESSURE 0.520
4 9974102178 RING, BACK-UP 0.230
5 9974102179 SPRING 0.04
6 9974100594 DISC, FRICTION 0.04
7 9974102704 DISK, BRAKE 0.03
10 9974102666 PLANET CARRIER - PRIMARY
11 9974102667 GEAR - PLANET
12 9974102180 SHAFT
13 9974101182 BEARING, ROLLER 0.028
15 9576100517 PIN
15 9974101183 PIN, SPIRAL
16 9974102668 CARRIER, PLANET
17 9974102671 GEAR, PLANET 2.082
18 9974102182 SHAFT
19 9974102183 BEARING 0.064
20 9974102672 SPACER
21 9974102185 WASHER, THRUST
22 9974102942 BASE 40
23 9974102846 SUPPORT, BEARING 32.030
24 9974102941 DRUM 125
25 9974102676 CLOSURE, CABLE DRUM 5.400
26 9974101211 BEARING, BALL 0.816
27 9974101216 SEAL, OIL 0.176
28 9974102868 O-RING 0.010
29 9974102190 SEAL, OIL 0.320
30 9974102191 RING, RETAINING 0.016
31 9974102849 WASHER, THRUST 0.108
32 9974102731 BASE MTG. MOTOR
33 9974101198 O-RING 0.006
34 9974102194 GEAR, SUN 0.059
35 9974102677 PRIMARY SUN GEAR
36 9974102195 SPACER 0.280
37 9974102196 PLATE, THRUST 0.115
38 9974102197 PLATE, THRUST 0.202
39 9974102822 BAR, SPACER
40 9974102854 CAP SCREW
42 9974103081 CAPSCREW
43 9974102747 WASHER, THRUST 0.054
44 9974102855 GAUGE, SIGHT
45 9974102201 PLUG, FLUSH
46 9974102858 PLUG, VENT 0.006
47 9974102203 O-RING 0.001
48 9974102204 RING, BACK-UP 0.004
51 9974102665 BEAIRING, SPRAG 0.070
52 9974102218 BEARING, THAUST 0.018
53 9974102219 RING, RETAINING 0.006
55 9974102221 RING, RETAINING 0.001
56 9974102214 BRAKE ASSY 1.61
57 9974103088 WEDGE, CABLE 5/8"
78 9974102859 CAP SCREW 0.030
79 9974102943 SIDEPLATE, MOTOR
80 90000989 SIOEPLATE, SUPPORT
83 9974103082 CAPSCREW
84 9974102821 WASHER
99 9974102705 SPACER 0.030
102 9974102885 VAL VE, BRAKE 4.812
103 9974103090 MANIFOLD
104 9974102898 O-RING 0.001
105 9974102684 CAPSCREW
107 9974102211 TEE, SWIVEL
108 9974102210 ADAPTER
110 9974102212 ELBOW
112 9974103091 SENSOR
114 9974103092 WASHER, SEAL
116 9974102208 HOSE 0.194
117 9974102931 PLUG
118 9974102227 O-RING 0.001
119 90000104 ADAPTER
121 90000105 O-RING 0.004
122 90000125 CAPSCREW
123 9974100476 LOCKWASHER 1/2" I.D.
124 90000831 COIL, 32V. 0.126
202 9974102825 PLATE 1.314
203 9974103084 BRACKET, ROLLER
204 9974103085 SHAFT, ROLLER
205 9974102828 LEVER
208 9974102831 BRACKET
209 9974102810 ROD 0.038
210 9974102832 SPRING 0.320
211 9974103086 BEARING
212 9974103087 RING, RETAINER 0.001
213 9974102181 WASHER, THRUST 0.140
214 9974102835 CAP SCREW
215 9974103043 CAPSCREW
216 7950160020 WASHER, LOOK 3/8" I.D.
217 9974102995 NUT
218 9974102839 WASHER
219 9974102808 BUSHING 0.012
220 9974102814 ROLLPIN
221 9974102840 ROLLER 22.680
222 9974102841 SHAFT 4.500
223 9974102966 PIN
224 9974102843 WASHER
225 9974103015 CAPSCREW
300 9974102222 KIT, SEAL 0.90
* Selected parts are automatically added to your RFQ list *

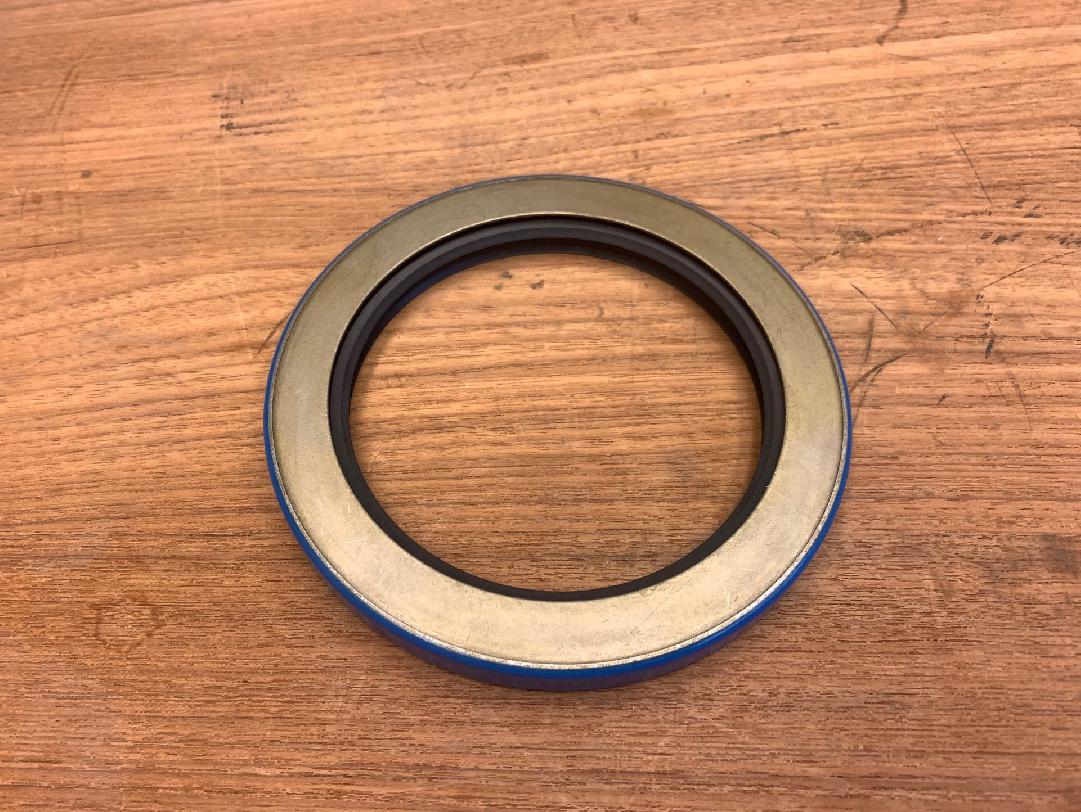

9974101216 Grove RT 540E SEAL, OIL
