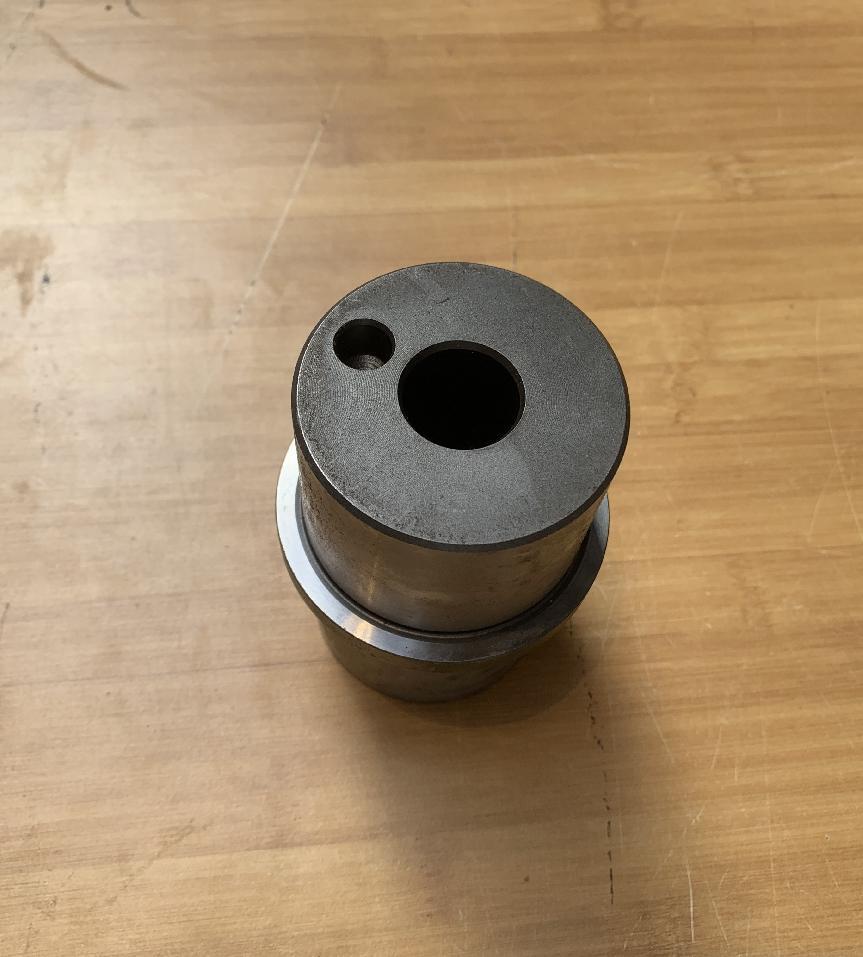

Grove 9049111670 - PIN, KING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
9049111670, 09049111670, 009049111670

Parts for Grove RT 540E, Figure 9049112882:
Part Number 9049111670: PIN, KING

Pos nr	Part number	Description	Weight in kg
	9601990029	RODEND, TIE R.H. THD.	0.780
	9601990030	RODEND, TIE L.H. TI-ID.	1.770
1	9049112833	HOUSING, AXLE
2	7304000105	GREASE NIPPLE	0.015
3	9049990974	PLUG
4	9049109352	RING, SEAL
5	9049111668	SCREW	0.001
6	9049111491	NUT
7	9049112834	KNUCKLE, STEERING
8	9049112835	KNUCKLE, STEERING
9	9049111670	PIN, KING	0.001
11	9049109330	BUSHING BRONZE	0.340
13	9049109332	WASHER STEEL	0.32
14	9049107886	WASHER BRONZE	0.242
15	9049110137	BUSHING	0.232
17	9049990921	RING, SNAP	0.010
19	9049991324	RADIAL SEAL RING NBR	0.025
20	9049108804	RADIAL SEAL RING NBR	0.025
23	9049111671	JOINT, UNIVERSAL
24	9049112836	HUB, WHEEL
25	9049108416	STUD, WHEEL	0.290
26	9049112837	SEAL, OIL	0.148
27	9049991001	SEAL RING	0.16
28	9049111674	BEARING, ROLLER	2.684
29	9049991044	BEARING	3.250
30	9049991267	NUT	0.59
31	9049991238	HEXAGON SOCKET SCREW	0.012
32	9049991911	BRAKE DISC	28.300
33	9049991912	BOLT
34	9049112838	LEVER, STEER
35	9049112839	LEVER, STEER
36	9049990983	HEXAGON SCREW
37	9049112840	SCREW, HEX SOCKET
38	9049109300	COVER
39	9049991244	SCREW
40	9049991916	NIPPLE, GREASE	0.012
41	9049112841	RÖD ASSY. TIE	24.200
42	9049112846	BRAKE, ASSY.	5
43	9049112847	BRAKE, ASSY.	5
44	9049112848	WASHER, SPRING
45	9049991895	SCREW
