Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
9049112842, 09049112842, 009049112842
9049112842, 09049112842, 009049112842
Parts for Grove RT 540E, Figure 9049112885:

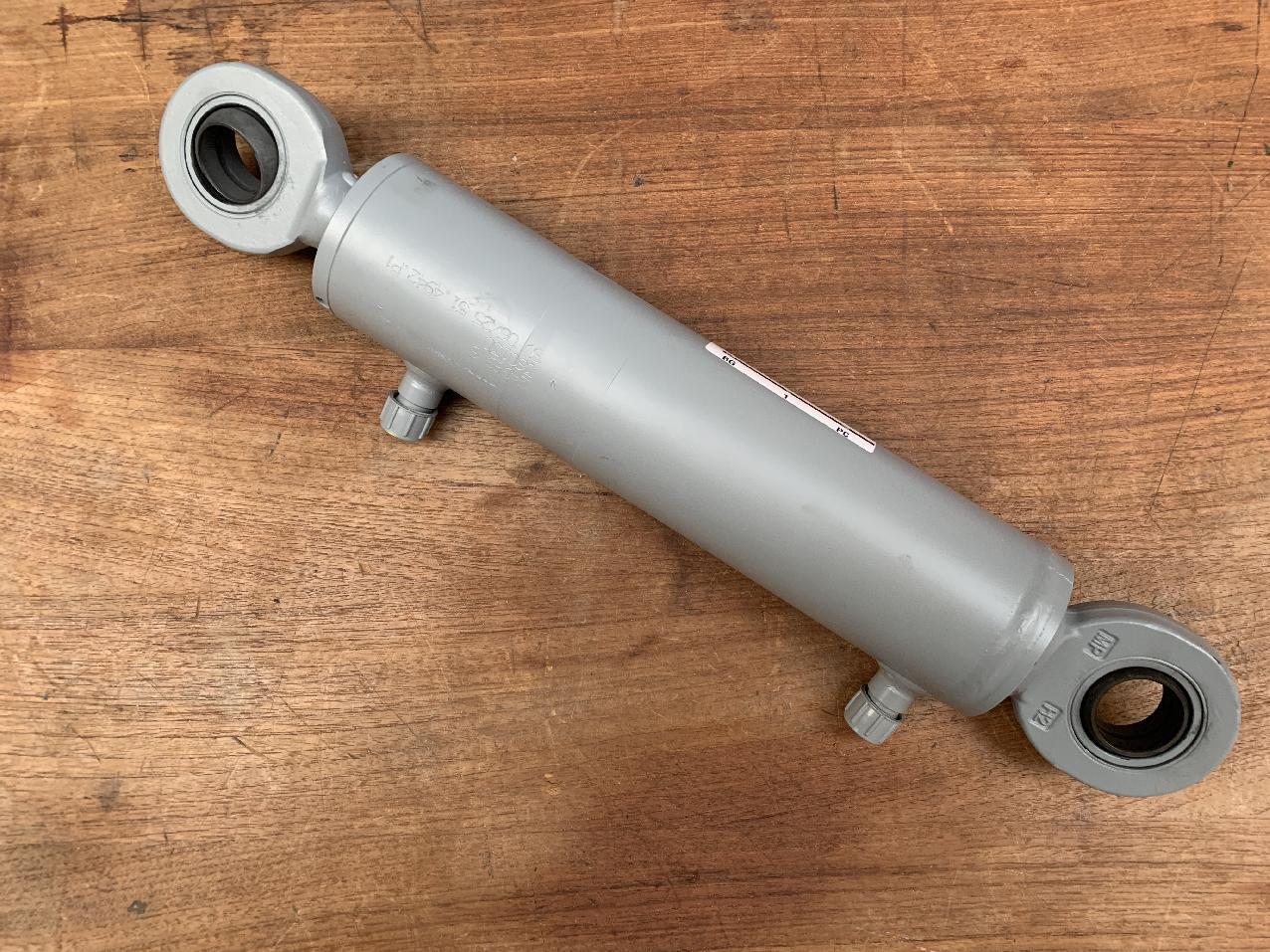

Part Number 9049112842: CYLINDER ASSY. STEER
Part Number 9049112842: CYLINDER ASSY. STEER
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 9049112887 | KIT, SEAL | 0.18 | |
| 1 | 9049112842 | CYLINDER ASSY. STEER | 0.540 |
| 2 | 9049112843 | PIN | |
| 3 | 9049112844 | WASHER | |
| 4 | 9049112845 | PIN, SPLINT | |
| 6 | 9049991915 | GREASE NIPPLE | 0.010 |
