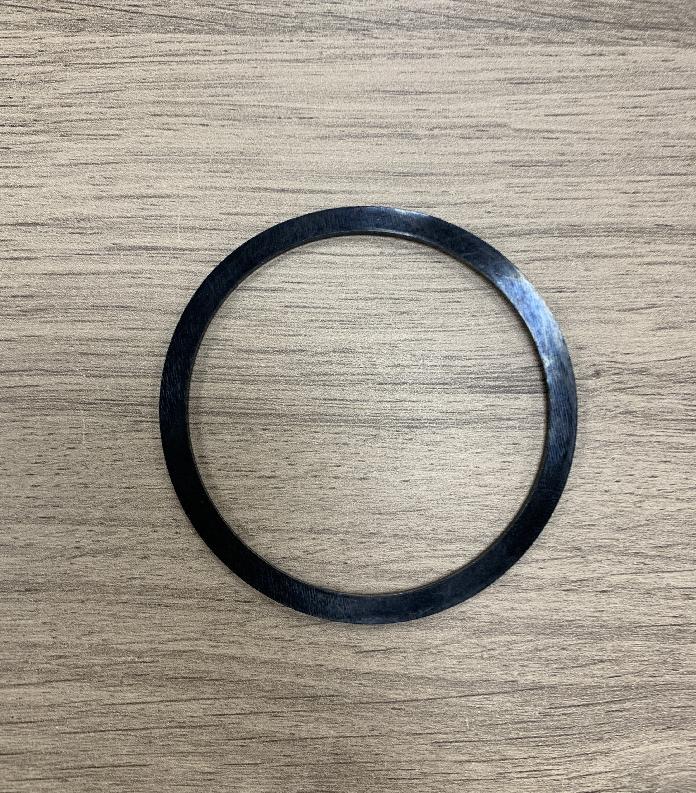

Grove 7755333609 - RING, BACK-UP

Search for Crane Part number

Figures in which the part appears:

Also known as:
7755333609, 07755333609, 007755333609

Parts for Grove RT 760E, Figure 6372100136:
Part Number 7755333609: RING, BACK-UP

Pos nr	Part number	Description	Weight in kg
	9752101223	KIT, SEAL	0.010
	7755904002	O-RING	0.005
	7755916002	O-RING	0.002
1	6372100135	BAR, CYLINDER	327.331
2	6701001010	PISTON, 6" CYLINDER	323.870
3	7099000378	SET SCREW	7.940
4	7794000581	SEAL	0.175
5	7753000120	RING, WEAR	0.034
6	7754000154	O-RING, LOW TEMPERATURE	0.050
7	7755349609	RING, BACK-UP	0.100
8	6910161623	SPACER
9	7753000185	RING, WEAR
10	6768100081	ROD
11	6372004952	HEAD, 6" CYLINDER	6.450
12	7753000452	RING, WEAR	0.064
13	7754000127	O-RING, LOW TEMPERATURE	0.050
14	7755433609	BACK UP RING	0.100
15	7794000532	SEAL, BUFFER	0.100
16	7794000616	SEAL, DEEP Z ROD	0.100
17	7753001636	RING, BACK-UP	0.023
18	7753000451	RING, WIPER	0.050
19	7709000028	PLUG, SAE #4
20	6794000664	RETAINER, SEAL
21	7926003469	VALVE, HOLDING	1.860
22	7754000134	O-RING, LOW TEMPERATURE
23	7755326609	RING, BACK-UP
24	6768003371	ROD, CYLINDER
25	7794101572	LOK-T SEAL
26	7753000752	RING, GUIDE LOCK
27	6705013725	PLATE, ROD RETAINING
28	7115170850	CAP SCREW,	0.040
29	7950170141	WASHER, 71161
30	7115201050	CAPSCREW
31	7950200161	WASHER	0.030
32	7754000181	O-RING, LOW TEMPERATURE
33	7755333609	RING, BACK-UP
34	7709000026	PLUG, PIPE	0.163
35	7690101224	PIN, DOWEL
36	7794101571	POLYSEAL RING
300	7373100023	CYL SEAL KIT	0.25
