GMK (Grove GMK )
7974100013 (Grove RT 875E )
80026025 (Grove RT 880E )
80026025 (Grove RT 890E )

Also known as:
9974103011, 09974103011, 009974103011

Parts for Grove RT 875E, Figure 7974100013:

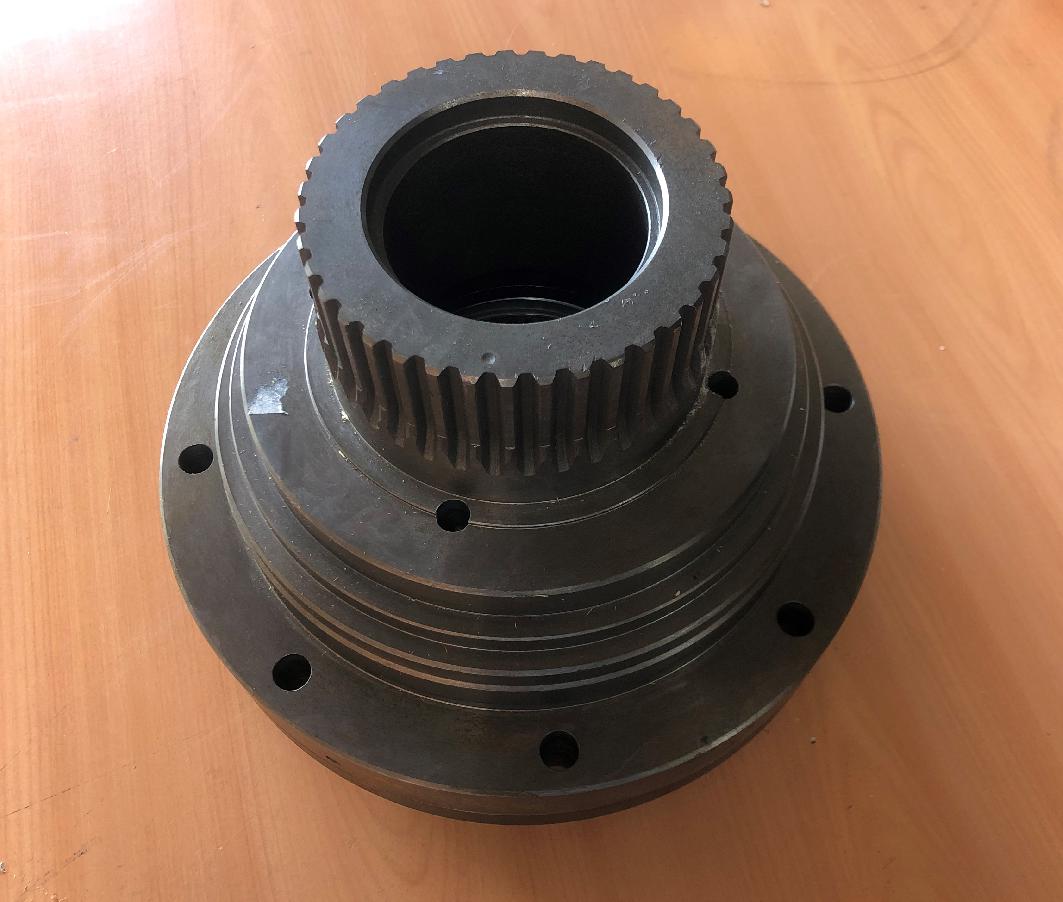

Part Number 9974103011: BRAKE CYLINDER ASSY.

Pos nr	Part number	Description	Weight in kg
	7755908002	O-RING	0.050
	7755904002	O-RING	0.005
	9632103277	CAPSCREW
	9632103278	KIT, SEAL	0.260
	9632103304	SOLENOID	0.700
	9632103305	CONNECTOR
	9974102227	O-RING	0.001
1	9974103010	CLUTCH ASSY	3.2
2	9974103011	BRAKE CYLINDER ASSY.	14.200
3	9974103012	PLANET CARRIER ASSY. PRIMARY
4	9974103013	PLANET CARRIER ASSY. OUTPUT	0.001
10	9974103031	ROLLER ASSY. CABLE	22.727
40	9974103046	PLATE, SIDE MOTOR
41	9974102733	HOUSING, BEARING	7.43
42	9974103015	CAPSCREW
44	9974101194	REDUCER, BUSHING
45	9974102858	PLUG, VENT	0.006
46	9974102701	GAUGE, SIGHT	0.068
48	9974103047	PLATE, SIDE
51	9974102954	CAPSCREW
55	9974103017	GEAR, SUN/PRIMARY	1.976
56	9974103018	CLOSURE, DRUM
59	9974103020	DRUM, CABLE	227.272
60	9974103048	CAPSCREW	0.116
61	9974103049	BASE
62	9974103050	LOCKWASHER	0.010
64	9974702728	BEARING
65	9974102702	BEARING	1.650
66	9974103023	WASHER, THRUST	0.160
68	9974102730	O-RING	0.06
69	9974102703	SEAL	0.40
70	9974102963	SEAL	0.63
71	9974102973	WEDG E,CABLE
72	9974102201	PLUG, FLUSH
77	9632103276	MOTOR, HYDRAULIC	68.181
78	9974103036	MANIFOLD	1.160
79	9974103061	VALVE ASSY. BRAKE
81	9974102982	CAPSCREW
82	9974103052	SENSOR ASSEMBLY	0.120
83	9974102681	O-RING	0.010
84	9974103054	FITTING, TEE
85	9974102929	HOSE ASSY	0.224
86	9974103055	FITTING, ELBOW	0.066
89	9974102984	CAPSCREW
90	9974103037	CAPSCREW
91	9974103038	LOCKWASHER
97	9974102985	FITTING,REDUCER
98	9974103039	O-RING	0.010
99	9974102931	PLUG
143	9576100566	RING, RETAINING	0.001
144	9974103032	BEARING	0.180
145	9974103028	BAR TIE
146	9974103029	RING,SNAP	0.001
147	9974103030	ADAPTER
152	9974103033	RING, RETAINER	0.014
203	9974102952	DISC,BRAKE	0.09
204	9974102953	DISC,FRICTION	0.06
205	9974102955	SEAL,U-CUP	0.18
206	9974102974	RING,BACK-UP	0.230
207	9974102975	PLATE,PRESSURE	0.936
208	9974102976	SPACER	0.350
209	9974101168	BRAKE SPRING	0.022
210	9974102977	SPACER,SPRING	0.058
211	9974102978	O-RING	0.17
212	9974102979	RING,BACK-UP	0.005
213	9974102980	O-RING	0.002
214	9974103034	CAPSCREW
216	9974103035	PLUG
330	9974101174	ROLLER	0.045
331	9974102718	PIN
347	9974102191	RING, RETAINING	0.016
357	9974103019	GEAR, SUN/OUTPUT	2.110
401	9974103002	SPACER	0.020
437	9974103003	WASHER,THRUST
438	9974100902	ROLLER	0.012
610	9974103040	ROLLER	6.900
611	9974102987	BRACKET
612	9974102988	BRACKET,MTG.
613	9974103041	SHAFT, ROLLER
614	9974102990	LEVER
615	9974102991	ARM,PIVOT R.H.
616	9974102992	ARM,PIVOT L.H.
617	9974102831	BRACKET
618	9974102810	ROD	0.038
619	9974102993	SPRING
620	9974102833	BUSHING
621	9974102834	PIN, COTTER
622	9974102807	WASHER
623	9974103042	CAPSCREW
624	9974100476	LOCKWASHER 1/2" I.D.
625	9974102995	NUT
626	9974102839	WASHER
627	9974103043	CAPSCREW
628	7950160020	WASHER, LOOK 3/8" I.D.
629	9974102808	BUSHING	0.012
630	9974102996	ROLLPIN
631	9974102181	WASHER, THRUST	0.140
637	9974102997	CAPSCREW
638	9974103027	CAPSCREW
700	9974103044	KIT, SEAL	1.250
