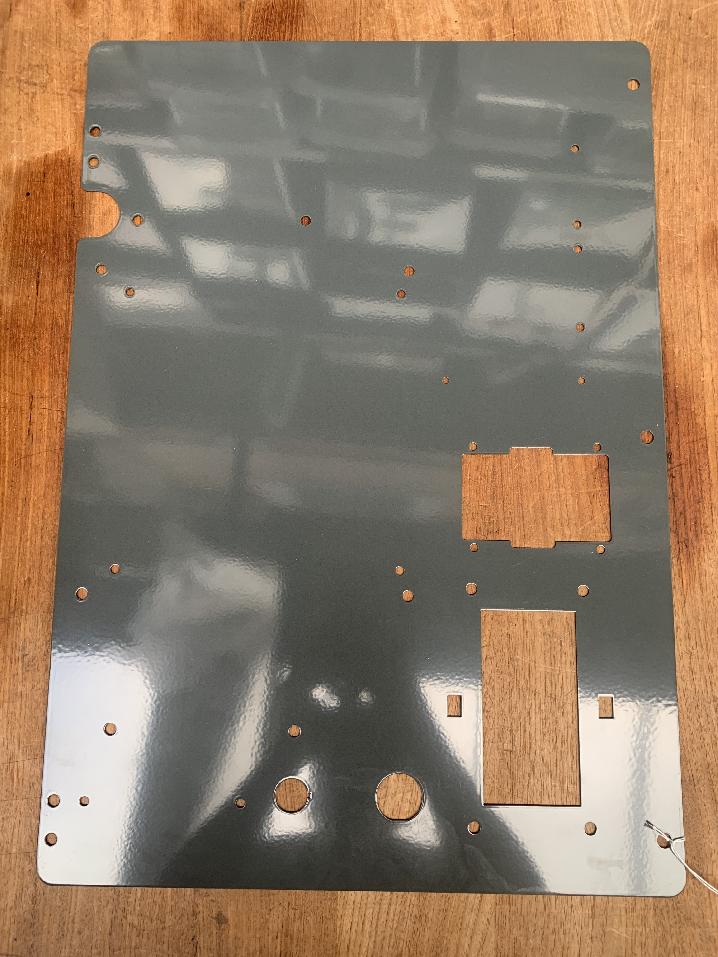

Grove 80023039 - PANEL FUSE & RELAY

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

80034697 (Grove RT 880E )
80024792 (Grove RT 890E )

Also known as:
80023039, 080023039, 0080023039

Parts for Grove RT 880E, Figure 80034697:
Part Number 80023039: PANEL FUSE & RELAY

Pos nr	Part number	Description	Weight in kg
	01575650	CABLE HOLDER ST37 K
	80023039	PANEL FUSE & RELAY	3.352
	80023076	PLATE MODULE
1	80023037	PANEL WELD FUSE\|AND RELAY	17.610
2	80023469	PLATE CONNECTOR BULKHEAD
3	80024300	HARNESS ASSEMBLY-FUSE & RELAY PA	13.870
4	7482000035	FLAT FUSE LINK 5 A	0.005
5	7482000034	FUSE, 7.5AMP	0.005
6	7482000033	FLAT FUSE LINK 10 A	0.004
7	7482000032	FLAT FUSE LINK 15 A	0.005
8	7482000031	FUSE	0.014
9	7482000030	FUSE, 25AMP	0.010
10	7115140450	CAPSCREW
11	7950140141	WASHERI/IT" HARROW	0.050
12	7950140050	LOCK WASHER	0.006
13	7660140000	NUT. HEX 114	0.004
14	7950100050	L WASHER #10 ST B18.22.1	0.005
15	7101100611	SCREW, MACHINE
16	7111040610	SCREW\|#4-40 X 3/4"	0.018
17	7950040141	F WASHER\|#4 ST	8.072
18	7660041100	HEX NUT #4-40 UNC GR2	0.001
19	7950100141	F WASHER\|#10 ST B18.22.1 NARR	0.001
20	7850000208	TIE, CABLE	1
21	7111100611	SCREW, MACHINE
22	7660101100	NUT\|#10-24UNC SAE-2	0.001
23	7111100411	SLOT PMS #10-24UNCX0.5 G1	0.006
24	7111080411	SCREW, MACHINE
25	7950080141	FLATWASHER 5/32" I.D.	0.006
26	7950080050	LOOKWASHER, 5/32" I.D.	0.010
27	7660081100	NUT, HEX	0.005
28	7121130801	MACHINE SCREW, M5X12 SLOTTED
29	7951130210	LOCKWASHER 5MM I.D.
30	80023834	PLATE - MODULE
31	7115140650	BOLT, HEX 1/4"-20 HC X 3/9 - GPO S	0.036
32	7659000865	NUT
33	7086001082	HOLDER, FUSE	0.100
34	7111100807	SCREW, MACHINE
35	7025000821	ALARM, FAST PULSE BUZZER
36	8496980002	MOULDING	9
40	7709000021	DOT PLUG	0.010
