Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
AT Parts (Grove )
2192900607 (Grove RT 9100 )
RT 9100 (Grove RT 9100 )
Also known as:
4120900073, 04120900073, 004120900073
Parts for Grove RT 9100, Figure 2192900607:

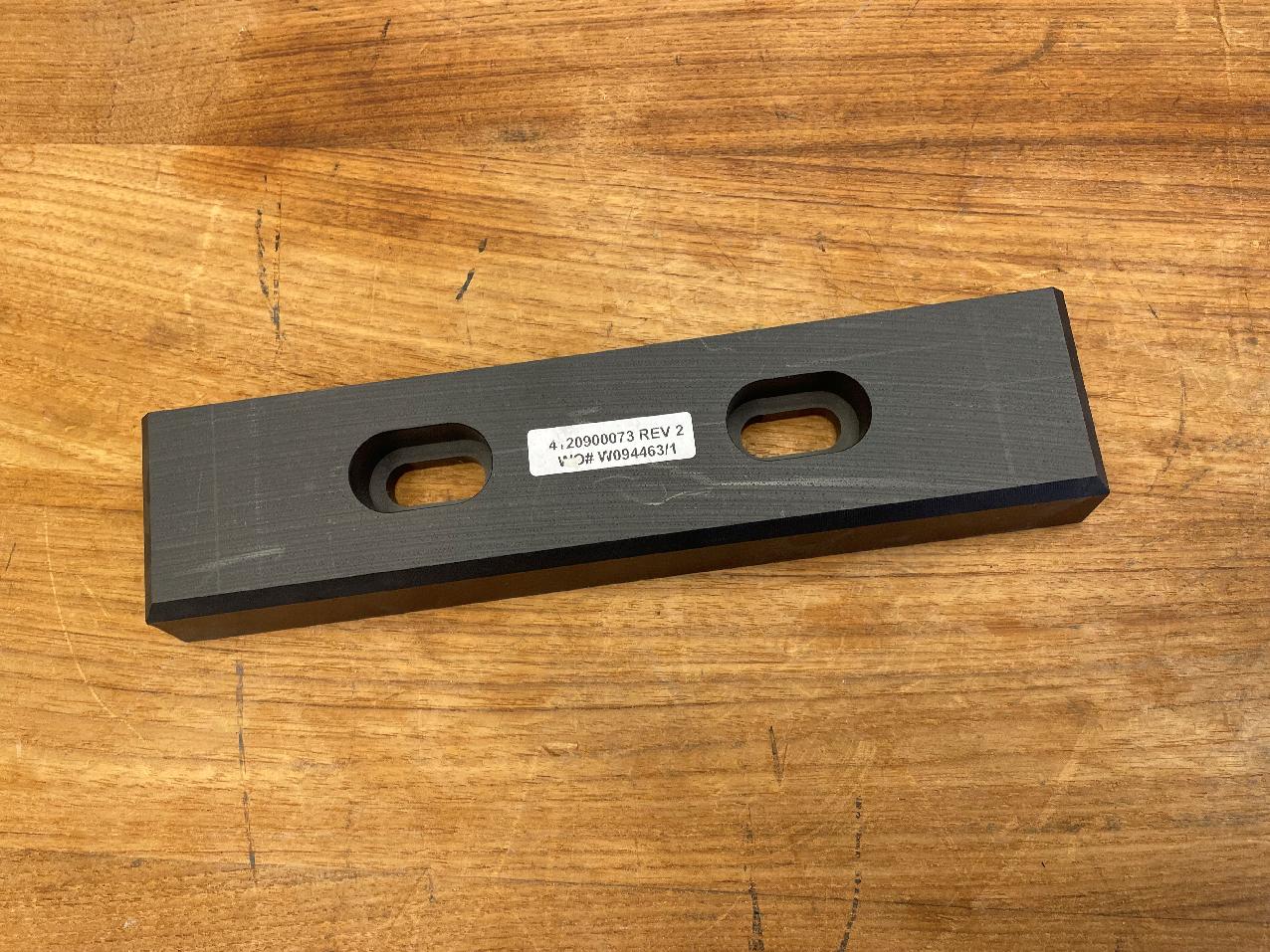

Part Number 4120900073: PAD, WEAR
Pos nr Part number Description Weight in kg
7755912002 O-RING 924 ID 0.005
1 2192900611 SECTION, BOOM BASE
2 2192900582 SECTION, INNER MID
3 2192900608 SECTION, OUTER
4 2192900586 SECTION, FLY
5 2192900590 SHEAVE INSTALLATION
6 6372002975 CYLINDER ASSEMBLY * 650" 1.940
7 6705006897 PLATE
8 4177900092 PLATE
9 6099000351 BOLT, DRILLED HEAD
11 6768001073 ROD, LOCK
12 6099000352 BOLT, DRILLED HEAD
13 6671000195 PAD, WEAR
14 7950160161 FLATWASHER 3/8" I.D. 0.022
15 7115161650 CAPSCREW 0.032
16 6705006904 PLATE, BASE
17 6705006903 PLATE, BASE
18 6869000337 SUPPORT, PAD
19 6869000342 PAD, SUPPORT
20 4120900073 PAD, WEAR 0.39
21 6671000260 PAD, WEAR 0.246
22 7111160610 SCREW, MACH 3/8--16 HC X 3/4"-GRD 1 0.016
23 6705007136 RTAINER
24 7118262250 HEX HD BOLT
25 7949000359 WASHER 1" I.D. 0.038
26 7660260008 NUT, HEX
27 6099000314 CAP SCREW, MODIFIED
28 7660180200 NUT, HEX
29 2197900043 PLUG, ADJUSTING
30 7834000100 SPRING 0.1504
31 6059000131 BAR, ADJUSTING
32 6059000130 BAR, ADJUSTING
33 6671000106 PAD, WEAR 0.410
34 7111161607 SCREW, MACHINE
35 7950160050 LOCK WASHER 3/8" PEG 0.080
36 7660160000 NUT, HEX 0.018
37 6671000166 PAD, WEAR 0.064
41 2113200600 ROLLER 11.363
42 6810003093 SHAFT
43 7950180050 WASHER, LOOK 1/2" I.D. 0.006
44 7115180850 BOLT, HEX 1/2"-13 HC X 1" - GPO S 0.042
46 6620000037 MAN IFOLD
47 7115162450 CAPSCREW,
48 7445080804 ELBOW, 90 DEGREE 0.195
49 7445121204 SWIVEL ADAPTER 0.216
50 7445080801 SWIVEL ADAPTER
51 7545301820 HOSE ASSY, 3/8 X 26"
52 7545502420 HOSE ASSY, USE AS REQUIRED 1.040
53 7445120803 SWIVEL ADAPTER 0.160
54 7445121203 SW ADAPT UNION- 0.160
55 7444060017 PLUG
56 6671000877 PAD, WEAR
57 6671000903 PLATE, BASE
58 7112140450 CAPSCREW,
59 6671000102 WEAR PAD 1.210
60 7785261674 SET SCREW
61 6705004988 PLATE, RETAINER
62 7112160850 REPLACED BV 7115160850
63 6061000070 BASE, PAD 5.740
64 4197900420 PLATE, SWIVEL 2.600
65 6671000163 PAD, WEAR 0.180
66 4197900284 KEEPER
67 7115161450 CAPSCREW 0.029
68 2113900027 ROLLER ASSEMBLY
69 6810001249 SHAFT
70 6949000159 WASHER
71 7440000000 FITTING, GREASE 1/8"NPT 0.006
72 4162900033 CAP, END
73 7112180650 USE 7115180650 CAP SCREW
75 6086000638 BLOCK, GUIDE
76 4175900043 RETAINER, BOOM
77 6086000637 BLOCK, GUIDE
78 7949000235 WASHER 1/2 ID 0.006
79 7118181050 1/2 NC X 1 1/4 0.047
81 6869000446 CYLINDER SUPPORT INSTALLATION
82 6705015845 PLATE, CENTERING
83 6768003876 ROD, RETAINER
84 6705017948 PLATE, SHIM
85 6705017949 PLATE, SHIM
86 6705017950 PLATE, SHIM
102 7069000218 BEARING 0.060
202 7069000001 BEARING, BALL
301 6689000445 PIN
302 6869000441 SUPPORT, CYLINDER
303 6671000159 WEAR PAD
304 4113900114 PAD, WEAR
305 7115221450 CAP SCREW
306 7950220141 WASHER, FLAT 3/4" 0.021
307 7111161007 SCREW, MACHINE
308 7660160200 NUT. HEX 3I8"-16 HC - GPO A
309 6705008252 PLATE, SUPPORT
310 7118302250 CAP SCREW,
311 7949000231 WASHER 1/4"LD. 0.100
* Selected parts are automatically added to your RFQ list *
4120900073 Grove RT 9100 PAD, WEAR
