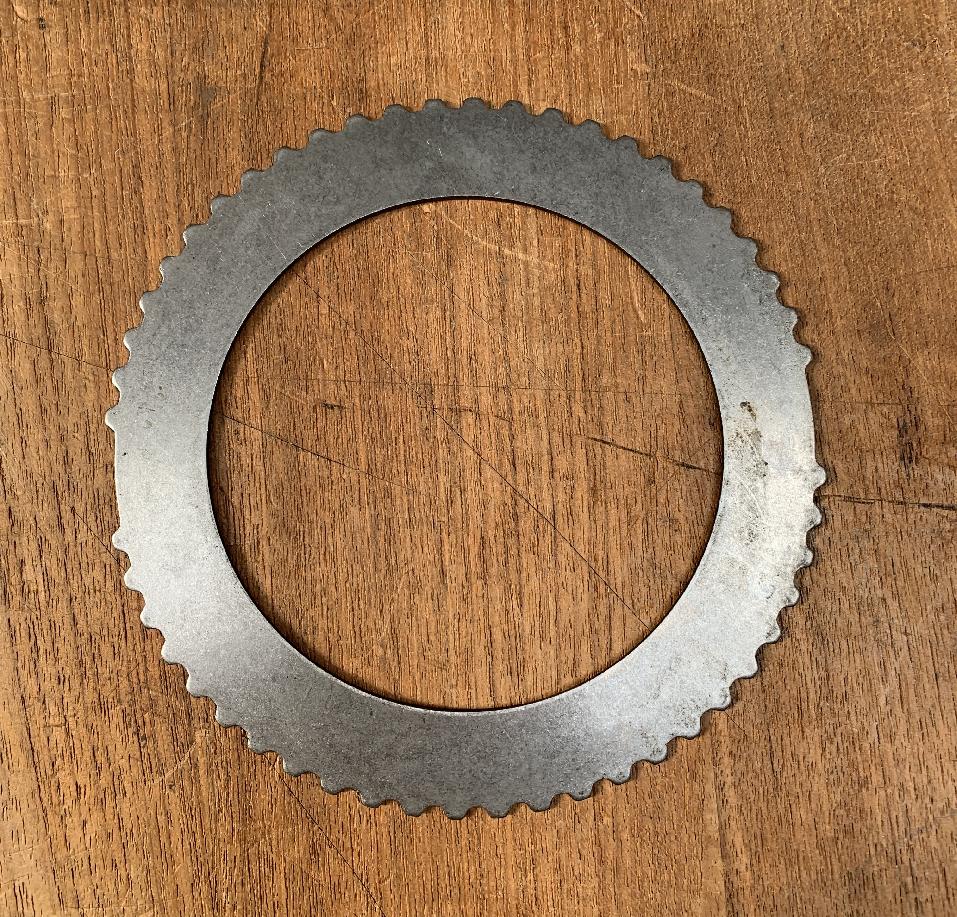

Grove 7705009286 - STATOR

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

AT part (Grove )
6920990213 (Grove AT 635 )
6188000137 (Grove AT 750 BE )
GMK (Grove GMK )
6188000707 (Grove RT 9100 )
RT 9100 (Grove RT 9100 )
6176990186 (Grove TT 865 )

Also known as:
7705009286, 07705009286, 007705009286

Parts for Grove RT 9100, Figure 6188000707:
Part Number 7705009286: STATOR

Pos nr	Part number	Description	Weight in kg
1	6547000157	HOUSING, BRAKE
2	6258000747	COVER
3	6450000291	FLANGE
4	6701000189	PISTON
5	6810001788	SHAFT	1.9
6	7705009286	STATOR	0.089
7	7388000101	DISC, FRICTION	0.02
8	7834000165	SPRING	0.04
9	7753000437	SNAP RING
10	7755252000	O-RING
11	7755256000	O-RING
12	7753000225	SNAP RING
13	7069000349	BEARING, BALL	0.26
14	6910007874	SPACER
15	7794000517	SEAL
16	6490000078	GEAR
17	6570101000	KEY	0.014
18	7115161050	HEX HD BOLT	0.103
19	7949000377	WASHER	0.015
20	7926000352	VALVE	0.01
21	7258000667	PROTECTOR, THREAD
22	7949000263	WASHER, HARDENED	0.010
23	9752100419	KIT	0.22

* Selected parts are automatically added to your RFQ list *
