Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3220344-ETL (Grove GMK 3060 )
3220344-ETL (Grove GMK 3060-2 )
3220344-ETL (Grove GMK 4080-3 )
GMK 4090-1 (Grove GMK 4090-1 )
3220344-ETL (Grove GMK 5250L )
3220344-ETL (Grove GMK 3060-2 )
3220344-ETL (Grove GMK 4080-3 )
GMK 4090-1 (Grove GMK 4090-1 )
3220344-ETL (Grove GMK 5250L )
Also known as:
3143549, 03143549, 003143549
3143549, 03143549, 003143549
FLAT GRIP - Part 3143549 for Grove cranes
Fits these models: Grove GMK 3060, Grove GMK 3060-2, Grove GMK 4080-3, Grove GMK 4090-1, Grove GMK 5250L

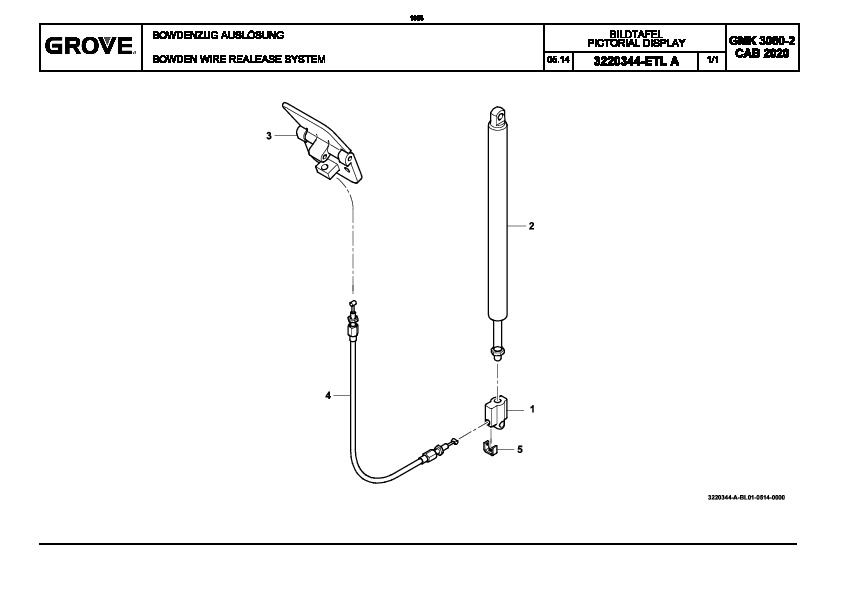

Figure 3220344-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3227557 | RELEASE HEAD | |
| 2 | 3238709 | LOCKABLE GAS SPRING | 2 |
| 3 | 3143549 | FLAT GRIP | |
| 4 | 3227558 | BOWDEN CABLE | |
| 5 | 3247745 | BOWDEN CABLE | 2 |
* Selected parts are automatically added to your RFQ list *
