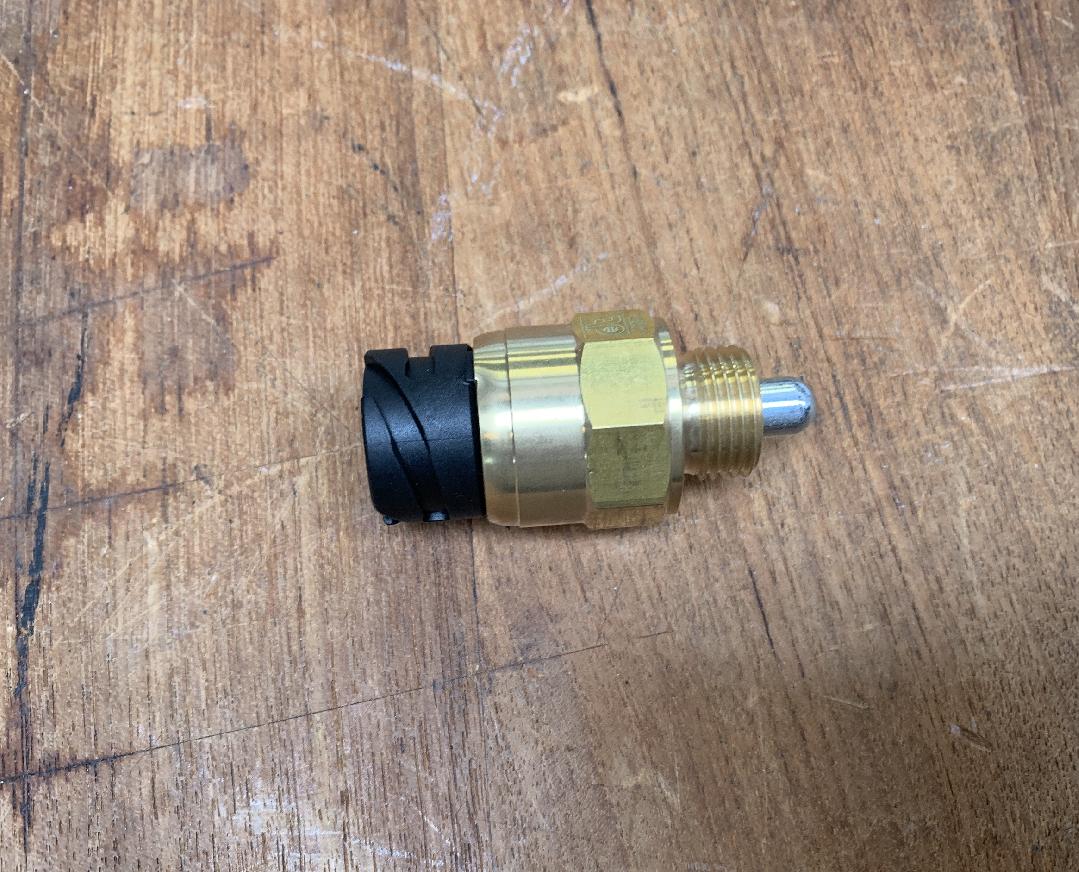

Grove 3323426 - SWITCH

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3323426, 03323426, 003323426

Parts for Grove GMK 3060-2, Figure 4224269-ETL:
Part Number 3323426: SWITCH

Pos nr	Part number	Description	Weight in kg
001	3067041	STEERING ROD 191	32.300
002	3067042	STEERING ROD 192
003	3067043	STEERING ROD 193	33.550
004	3067044	STEERING ROD 194	27.650
005	3067045	STEERING ROD 195
006	3067046	STEERING ROD 196
7	4285827	LEVER
8	3321242	STEERING ROD (HEYD)	33.200
9	4192458	STEERING ROD	51.3
010	3121088	VARIANTS STEERING RODS (L=1295)	9.9
012	3121091	VARIANTS STEERING RODS (L=1250)	19.2
13	3323426	SWITCH	0.085
14	3145120	BALL PIVOT	1.82
019	3199920	CARDAN SHAFT	3.65
20	2251286	HEXAGON BOLT
21	3323361	HEXAGON FITTING BOLT
23	0437647	HEXAGON NUT	0.230
26	1207034	WASHER	0.02
27	3145123	BALL PIVOT	2.900
28	3080285	SLIDE PLATE
29	1146946	HEXAGON SOCKET HEAD CAP SCREW	0.04
30	0437644	HEXAGON NUT M12	0.084
32	2251741	STOP-BOLT
33	3216510	ZB KNUCKLE
34	4242903	CONSOLE
35	3116479	RING
36	1067553	FENDER WASHER	0.01
37	0027079	HEXAGON SCREW M8	0.014
38	0437642	HEXAGON NUT M8	0.003
