Grove 3316273 - COTTER PIN

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

4287033-ETL (Grove GMK 3060-2 )
4287036-ETL (Grove GMK 3060-2 )
4287039-ETL (Grove GMK 3060-2 )
4287042-ETL (Grove GMK 3060-2 )
4287045-ETL (Grove GMK 3060-2 )
3215960-ETL (Grove GMK 4100-L )
3215972-ETL (Grove GMK 4100-L )

Also known as:
3316273, 03316273, 003316273

Parts for Grove GMK 3060-2, Figure 4287039-ETL:
Part Number 3316273: COTTER PIN

Pos nr	Part number	Description	Weight in kg
001	4157918	SINGLE HOOK
2	3322321	TIE BAR
3	4157925	SHEAVE
4	4299608	AXLE
005	4299613	HOUSING CPL.
6	4157929	ROPE SHACKLE
7	4299609	ROD
8	4155722	THREADED ROD
9	3138417	ROPE PROTECTOR	2.380
10	4299611	COVER PLATE
11	4157313	LOCKING FOR LIFTING HOOK 10
12	0028528	CIRCLIP
13	0437252	HEXAGON SCREW
14	1573828	CYLINDRICAL ROLLER BEARING	1.52
15	2257975	AXIAL-CYLINDRICAL ROLLER BEARING	0.81
16	3316277	HEXAGON NUT M16
17	4181283	SCREW M4
19	3316261	V-RING
20	3316273	COTTER PIN	0.001
21	3046376	SAFETY CATCH	0.22
22	0209834	LUBRICATION NIPPLE	0.005

* Selected parts are automatically added to your RFQ list *

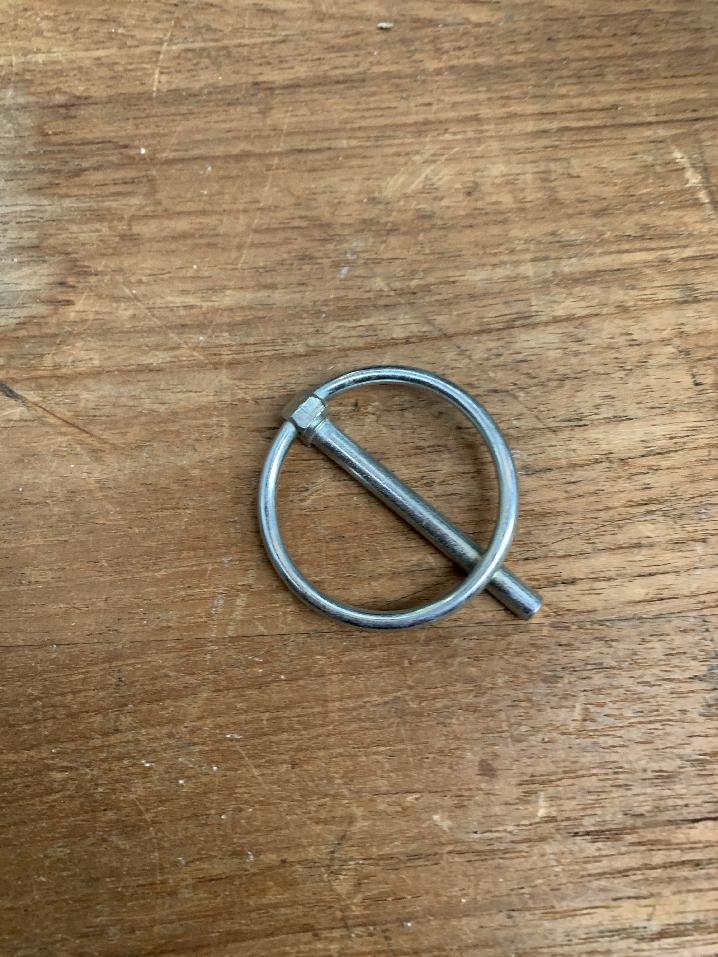

3316273 Grove GMK 4100-L COTTER PIN
