Grove 6718001087

Pos nr	Part number	Description	Weight in kg
	7755018002	O-RING 739 ID	0.005
	7755021002	O-RING	0.023
	7755916002	O-RING	0.002
	6069000445	BEARING	0.320
	6069000517	BEARING
3	2174910115	SECTION, OUTER MID
4	2174910105	SECTION, FLY AND NOSE	1145.410
5	6372100136	CYLINDER ASSEMBLY - 6" TELESCOPE
6	6372100121	CYLINDER ASSEMBLY - 6.00"
12	7099000411	CAPSCREW
13	7447161603	ELBOW, 90 DEGREE MALE	0.252
14	7447161638	ELBOW, 90 DEGREE LONG
15	7118221650	CAPSCREW	0.136
16	7949000236	WASHER	0.027
17	4174910104	PLATE, MOUNTING
18	2174910035	SUPPORT, SHEAVE
20	6810100049	SHAFT
21	7118150550	HHCS\|5/16-18UNCX0.63 G8	0.010
22	7949000534	WASHER, HARDENED ROUND	0.004
24	7115151050	CAPSCREW	0.014
25	7440000000	GREASE NIPPLE	0.006
26	6718001089	WHEEL, SHEAVE	9.38
27	6671000263	PAD, WEAR	0.113
28	7111160807	SCREW, MACHINE	0.027
29	4174910132	SHIM,
30	4174910133	SHIM
32	7949000259	WASHER	0.100
33	7118221250	CAPSCREW	0.14
36	7364000047	MALE CONN
38	2174910031	PLATE, FOOT
39	6671000177	PAD, WEAR	0.080
40	2174910030	PAD, WEAR	0.920
42	7115160850	BOLT HEX 3/R-16 HC X 1" - CR0 5	0.018
43	7950160141	WASHER, 3/8" PLAIN NARROW	0.004
44	2174910074	RETAINER, PAD
45	7115161050	HEX HD BOLT	0.103
46	7660160000	NUT, HEX	0.018
48	7115151450	CAPSCREW
49	4174910121	SHIM
50	4174910108	SHIM
51	4174910107	SHIM
52	6810100051	SHAFT
53	6705100043	SHIM	0.034
54	6772100000	ROLLER	0.820
55	7690052810	PIN, COTTER
58	4174910152	SHIM
59	4174910120	PLATE, KEEPER
60	6810100048	SHAFT
63	4174910153	SHIM, INNER
64	4174910109	PLATE, KEEPER
65	6810100052	SHAFT
68	4174910114	PLATE, KEEPER
69	4174910154	SHIM, OUTER
72	7115152450	CAP SCREW
73	7950150050	LOCK WASHER 5116" RED	0.002
74	2174910098	PUSHER
75	7447161601	STRAIGHT THREAD	0.280
80	7660260008	NUT, HEX
81	7949000360	WASHER 1" I.D.
82	7447161602	CONNECTOR
87	7447121233	90 DEG ELBOW
88	7447121601	STR ADAPTER - M	0.250
89	6059100013	TAPPED BAR	0.940
90	6099000599	CAP SCREW, MODIFIED
91	7660180000	NUT, HEX 1/2"-13 DC - GPO A	0.016
92	7949000235	WASHER 1/2 ID	0.006
93	7099001194	CAPSCREW
94	2174910049	TRIGGER
95	7660220000	NUT, HEX
96	2174910102	MOUNT, CYLINDER
98	4184900275	SHAFT
99	4184900276	PLATE
101	7951170210	LOCKWASHER 8 MM	0.002
102	2159900213	MOUNT, SHEAVE

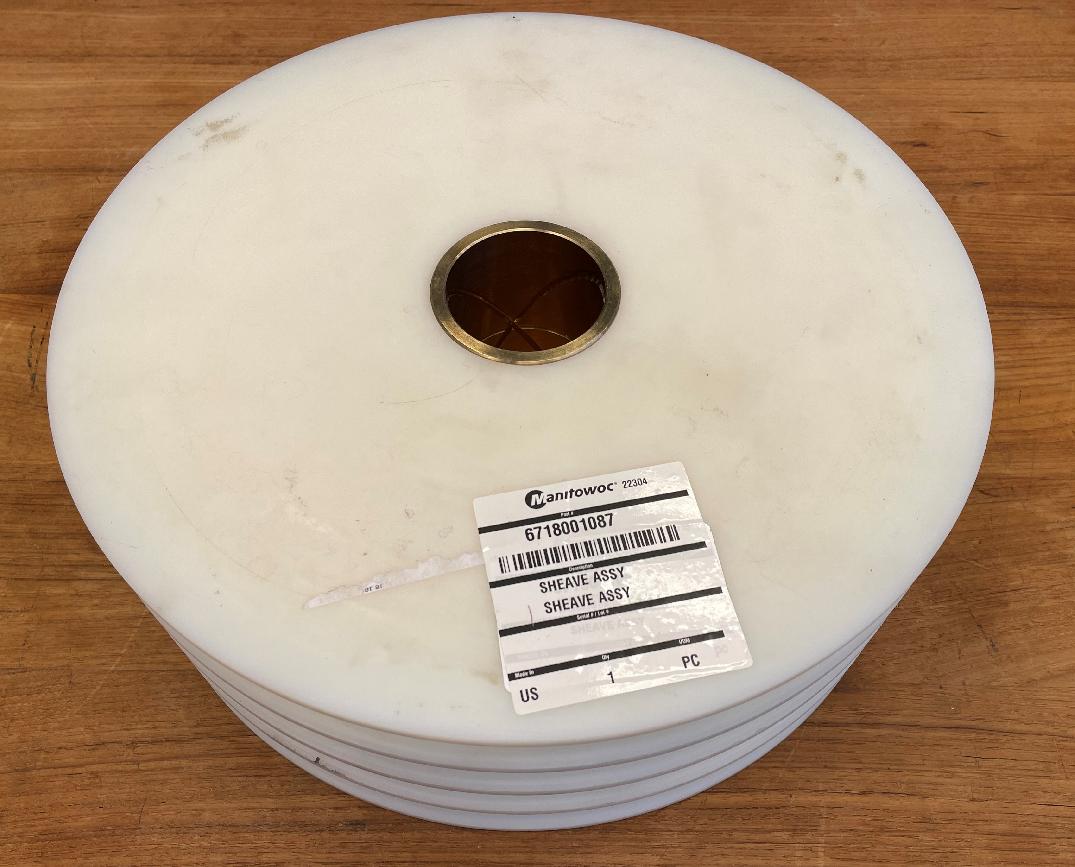

103	6718001087	SHEAVE	12.470
104	4159900981	CABLE, RETAINER
105	7115140650	BOLT, HEX 1/4"-20 HC X 3/9 - GPO S	0.036
106	7950140050	LOCK WASHER	0.006
107	6705006974	PLATE	0.562
108	7115180850	BOLT, HEX 1/2"-13 HC X 1" - GPO S	0.042
109	4159900432	SHAFT, SHEAVE
110	4174910301	PLATE, CYLINDER SUPPORT
112	4174910300	PLATE, KEEPER
113	4159910033	ANGLE, MOUNTING	0.214
114	4174910186	ANGLE, MOUNTING	0.300
115	7115150478	SCREW, FLANGE
116	2174910070	COVER
117	7115180650	CAP SCREW
118	7950160050	LOCK WASHER 3/8" PEG	0.080
119	7949000333	WASHER	0.050
120	7115151250	CAPSCREW	0.018
123	7110160623	CAPSCREW
124	7118180850	CAP SCREW	0.150
125	7111160607	SCREW
126	4174910238	SPACER
127	4174910314	BLOCK, GUIDE
128	4174910341	SHIM
129	7115200850	CAPSCREW
130	7950180141	FLATWASHER 1/2" I.D.	0.009
131	7950200141	F WASHER 5/8IN NAR MS	0.022
