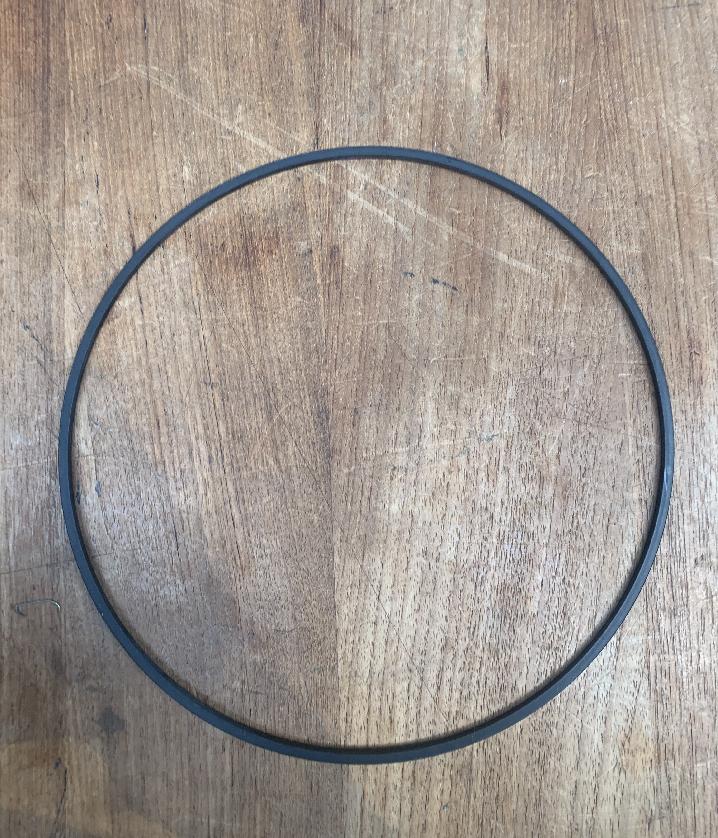

Grove 7794001584 - SEAL RING

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
7794001584, 07794001584, 007794001584

Parts for Grove TMS 700 E, Figure 6364101611:
Part Number 7794001584: SEAL RING - 8.50"

Pos nr	Part number	Description	Weight in kg
	7755908002	O-RING	0.050
	7755904002	O-RING	0.005
	7755912002	O-RING 924 ID	0.005
	7755916002	O-RING	0.002
1	6274100000	CASE
2	6830100001	SPOOL
3	7753001496	SPLTBEARGRNG	0.009
4	7794001587	POLYSEAL RING -	0.050
5	7440000000	GREASE NIPPLE	0.006
6	7794001584	SEAL RING - 8.50"	0.066
7	7755265400	QUAD RING	0.050
8	7949000407	WASHER	0.160
9	6705015997	PLATE	1.270
10	7111160807	SCREW, MACHINE	0.027
11	7709800000	PLUG	0.030
12	7709000842	PLUG	0.045
13	7709800003	PLUG,#12 SAE	0.074
14	7709800004	PLUG	0.114
15	7709800001	PLUG	0.009
300	7373100012	SWIVEL SEAL KIT	0.500
