Parts for Grove TMS 700 E, Figure 6512100339:

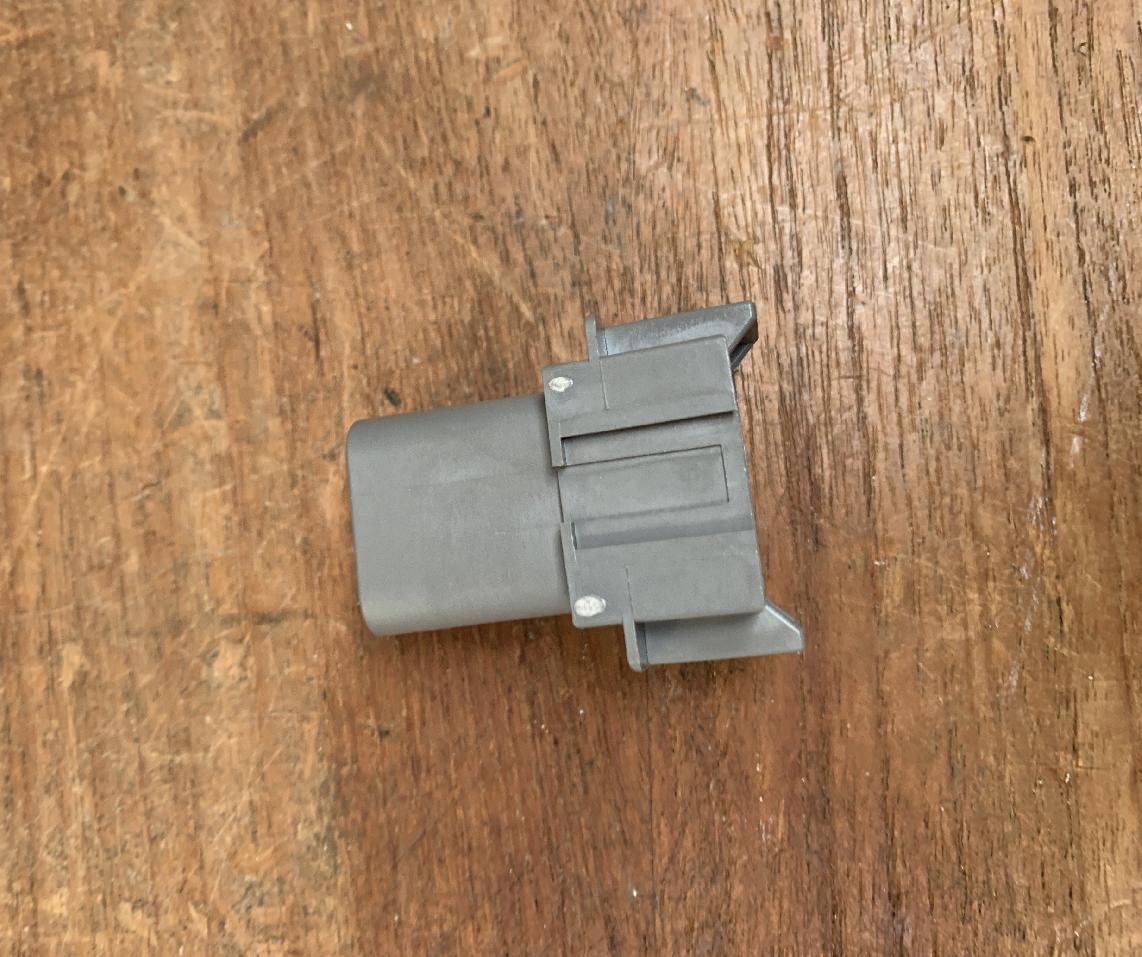

Part Number 7892000831: RECEPTACLE,
Pos nr Part number Description Weight in kg
7 7709000810 CONNECTION
8 7172000555 BOOT
9 7892000848 RECEPTACLE 0.130
10 7172000554 BOOT
11 7892000279 RECEPTACLE
12 7300000429 CLAMP, STRAIN RELIEF 0.560
13 7709000812 PLUG 0.020
14 7892001036 RECEPTACLE, SPLICE BLOCK 0.026
15 7892000832 RECEPTACLE 0.022
16 7172000551 BOOT
17 7709000220 PLUG
18 7709000811 PLUG 8 SOCKET
19 7172000550 BOOT
20 7892000831 RECEPTACLE, 0.020
21 7172000549 BOOT
22 7709000809 PLUG
23 7172000565 BOOT, CONNECTOR 50
24 7892000854 RECEPTICAL-P
25 7709000839 PLUG 2
26 7172000547 BOOT
27 7709000815 PLUG 0.080
28 7172000545 BOOT PLUG 0.008
29 7709000838 PLUG 1 SOCKET 0.014
30 7345222101 TERMINAL
31 7709000876 PLUG 0.005
33 7364001684 CONN-3 COND TOW 0.010
34 7892000253 TERMINAL, FEMALE SLEEVE 0.005
35 7892000254 TERMINAL, GREEN CABLE SEAL 0.100
36 7364001682 CONNECTOR, 2 CONDUCTOR TOV 0.008
37 7892000255 TERMINAL, GRAY CABLE SEAL 0.005
38 7689001883 PIN 0.008
39 7689000704 PIN 0.02
40 7689002053 PIN (16-18) GOLD PLATED 0.005
41 7826000095 SOCKET 0.005
42 7826000635 SOCKET CONTACT
43 7826000092 SOCKET (12) 0.010
44 7826000087 SOCKET CONTACT 0.010
45 7892001002 FERRULE, SINGLE WIRE 0.005
46 7689000503 PLUG SEAL 0.005
47 7364002505 CONNECTOR
49 7892000843 TERMINAL, FEMALE 0.002
50 7826000648 SOCKET, (14-16) GOLD 0.012
51 7892000257 TERMINAL, GREEN CAVITY 0.005
52 7364001683 CONNECTOR, 2 CONDUCTOR SHF 0.050
53 7892000252 TERMINAL, MALE PIN 0.005
54 7345001946 TERMINAL, MALE 12- 10 AWG
55 7531000569 HOLDER, FUSE 57
56 7482000032 FLAT FUSE LINK 15 A 0.005
57 7345001744 TERMINAL, FEMALE 16 - 14 AWG 0.160
58 7345001944 TERMINAL, FEMALE 12 - 10 AWG
59 7345241901 TONGUE, INSULATED RING 0.001
60 7345241701 TONGUE, INSULATED RING 0.744
61 7345232101 TERMINAL 6 AWG 0.006
62 7345211901 TERMINAL 12- 10 AWG 0.005
63 7345211701 TONGUE, INSULATED RING 0.100
64 7345191701 TERMINAL 16 - 14 AWG 0.010
65 7345191706 TERMINAL
66 7345242001 TERMINAL 8 AWG 0.004
67 7345221901 TERMINAL 12-IOAWG 0.010
68 7345001743 TERMINAL, FEMALE 16-14 AWG
69 7345222001 1/4" STUD 8 GA TERMINAL
70 7345232001 TERMINAL 0.004
71 7246003369 CONTROL LINE(METER WARE)
72 7246100020 CABLE, SHIELDED
75 7892000195 PARALLEL - NON-INSULATED 0.005
76 7892000196 PARALLEL - NON-INSULATED 0.003
77 8594100256 TUBING, HEAT SHRINK 1/4" I.D. 0.010
78 8594100257 H.S. TUBING - 1
79 8594000023 FLEXGARD - 1.625" I.D. 0.031
80 8594000022 FLEXGARD - 1.250" I.D. 0.023
81 8594000001 FLEXGARD - 1.00" 1 D. 0.280
82 8594000002 FLEXGARD - 750" I.D. 0.030
83 8594000004 FLEXGARD -.500" I D 0.100
84 8594000006 FLEXGARD -.350" I.D. 0.024
85 8594000019 FLEXGARD - .250" I.D. 0.102
86 7850000208 TIE, CABLE 1
87 7364100051 PLUG 0.006
88 7826100013 SOCKET 0.008
89 7364100052 SEAL 0.005
90 7364002483 PLUG, 4 PASS
91 7892000840 CONTACT INSERT 0.005
92 7892000841 TERMINAL 0.005
93 7364002491 LOCK, CONNECTOR
