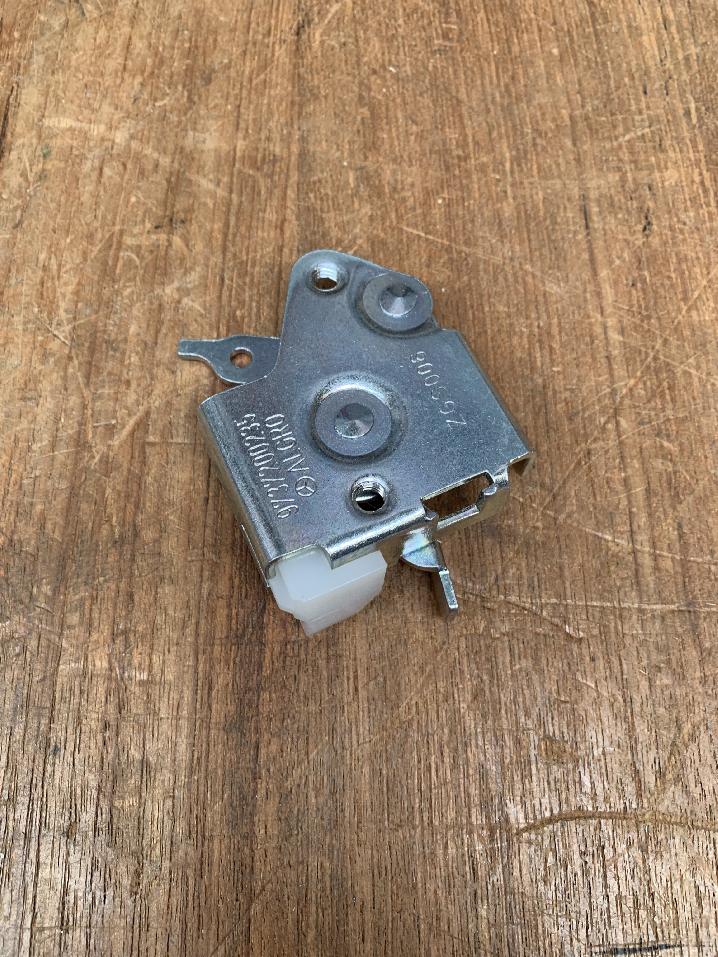

Grove 3134926 - LOCK RIGHT HAND

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
3134926, 03134926, 003134926

Parts for Grove GMK 4080-3, Figure 4282166-ETL:
Part Number 3134926: LOCK RIGHT HAND

Pos nr	Part number	Description	Weight in kg
1	3134921	DOORHANDLE OUTSIDE	0.360
2	3200404	TAPPING SCREW	0.001
3	3134926	LOCK RIGHT HAND	0.105
4	3226120	INTERNAL LOCKING RIGHT MGR	0.325
5	4282325	ROD DOOR LOCK RH
6	4282324	PLATE DOOR LOOK RH
7	4271268	PLATE HOLDER HANDLE
8	4271269	ROD LOCK 2
9	4271238	ROD LOCK 2
10	4282168	ROD LOCK RH
11	1577656	HEXAGON SCREW	0.005
12	1374620	WASHER M4	0.005
13	3044413	HEXAGON NUT
14	4282212	PLATE COVERLOCK RH
15	3323512	CABLE SLEEVE
16	3238705	HEXAGON SOCKET BUTTON HEAD SCREW
17	4160378	SLOTTED RAISED COUNTERSUNK FLANGE
18	4257205	PAN HEAD TAPPING SCREW	0.005
