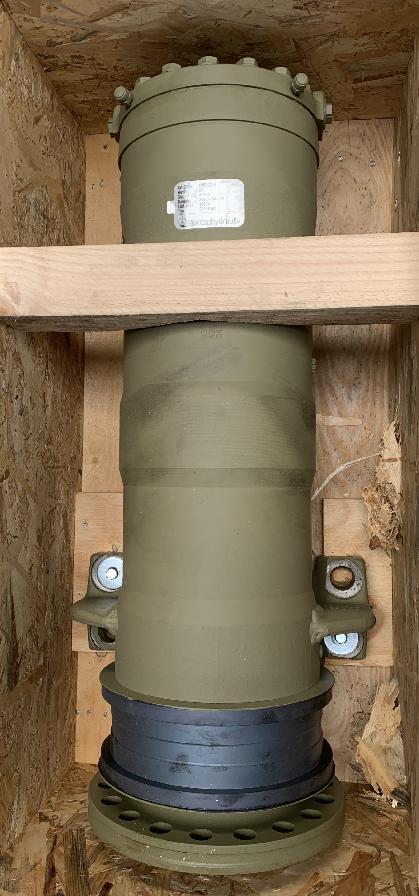

Grove 4243392 - SHOCK-ABSORBING STRUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
4243392, 04243392, 004243392

Parts for Grove GMK 4080-3, Figure 4325917-ETL:
Part Number 4243392: SHOCK-ABSORBING STRUT

Pos nr	Part number	Description	Weight in kg
1	3301167	WHEEL DRIVE
2	2252805	CARDAN SHAFT	39
3	1207756	WHEEL NUT	0.06
4	0106092	HEXAGON SOCKET HEAD CAP SCREW	0.17
5	3066099	WASHER	0.12
6	4243392	SHOCK-ABSORBING STRUT	140
7	3006265	STIRRUP	2.900
8	2215105	SHIM	0.22
9	1065914	O-RING	0.005
10	1685817	HEXAGON SOCKET HEAD CAP SCREW	0.11
11	1207873	WASHER	0.01
12	0106103	HEXAGON SOCKET HEAD CAP SCREW
13	1207936	WASHER
16	2255320	LIQUID-LEVEL INDICATOR	0.190
17	0559392	MALE SCREW COUPLING	0.02
18	0314592	LOCKING CONE	0.009
19	2216636	DIRT SCRAPER	0.085
21	3255170	FORCED LEVER 2 WITH BUSHINGS
22	3006271	LEVER I INCL	5.200
26	3078844	AXLE	1.3
27	2219672	FLANGE BUSHING	0.1
28	2313858	WASHER	0.36
29	1930099	THRUST WASHER	0.012
30	2254765	THRUST WASHER	0.02
31	2314166	SEALING RING	0.007
32	1922132	O-RING	0.01
33	2251079	SEALING RING	0.01
34	1577359	DOWEL PIN	0.040
35	2212326	CASTLE NUT	0.001
36	0106839	COTTER PIN	0.005
37	2314490	WASHER	0.03
41	0118576	HEXAGON SCREW	0.202
42	3319746	HEXAGON NUT	0.150
43	1930105	AXIAL- BEARING	0.16
44	1930104	V-RING	0.01
