Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

67 ( )
71 ( )

Also known as:
W214009Z

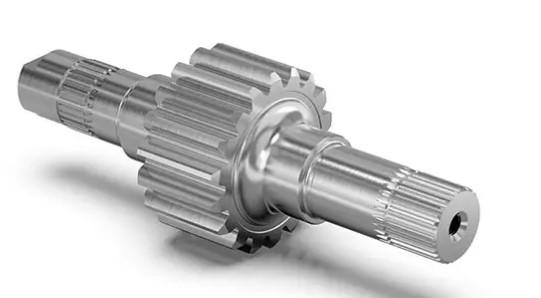

SHAFT - Part W214009Z for cranes

Fits these models: , ACG SA 9

Figure 67:

Pos nr	Part number	Description
1.1	W740103Z	SHEET(ACRYLIC)
1.2	W374102Z	KNOB
1.3	BMECKNOB0056	PALM GRIP
1.4	W714115Z	COVER(ACRYLIC)
1.5	W174019Z	BRACKET
1.6	W108931Z	COVER
1.7	W174024Z	BRACKET
1.8	W374114Z	KNOB
1.9	W414004Z	LEVER
1.10	W614052Z	BRASS PLATE
1.11	W614053Z	BRASS PLATE
1.12	W374002Z	KNOB
1.13	W224059Z	PIN
1.15	W438940Z	BRACKET
1.16	W108975Z	COVER
1.17	W714116Z	COVER ACRYLIC
1.18	W128957Z	HOPPERCOVER
1.19	W474258Z	HOPPER
1.20	W714084Z	COVER
1.21	W634105Z	COVER HOLDER
1.22	W108982Z	SUPPORT
1.23	W214009Z	SHAFT
1.24	W114146Z	GRIPPING SHEET
1.25	W114148Z	BIG SUPPORT
1.26	W414000Z	LEVER
1.27	W118993Z	LINK
1.28	W634001Z	ADAPTOR
1.29	W264005Z	BOLT
1.30	W108932Z	COVER
1.31	W264006Z	STUD
1.32	W634002Z	ADAPTOR
1.33	W264004Z	LOCATING SCREW
1.34	W254118Z	FRICTION BUSH
1.35	W234001Z	WASHER
1.36	W744102Z	GUIDE PIN
1.37	W224007Z	MICROSWITCH MBC IR3

* Selected parts are automatically added to your RFQ list *

W214009Z ACG SA 9 SHAFT
