Demag 31339799

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-1093 (Demag AC 155 )
90-1099 (Demag AC 155 )
993-0081 (Demag AC 25 )
993-0543 (Demag CC 2800 )
993-0544 (Demag CC 2800 )

Also known as:
31339799, 031339799, 0031339799

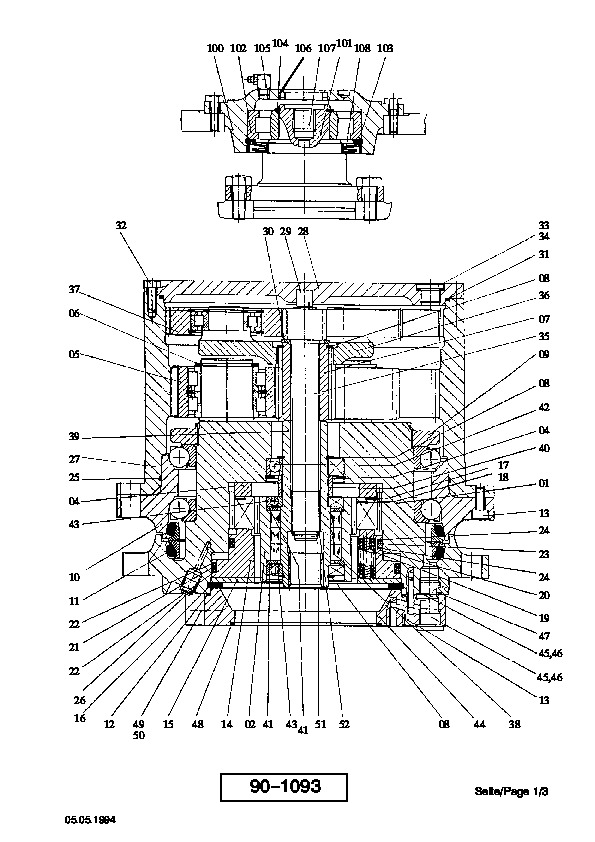

Parts for Demag AC 155, Figure 90-1093:
Part Number 31339799: SCREW

Pos nr	Part number	Description	Weight in kg
0	51574040	REDUCER
1	80670773	AXLE
2	80670873	CAM
3	80670973	RING
4	51104598	CIRCLIP
5	80671073	PLANETARY ASSY.
6	34247499	CIRCLIP	0.01
7	80628573	SUN GEAR SHAFT
8	34254099	CIRELIP
9	80671173	SHAFT NUT
10	80671273	BALL BEARING UNIT
11	26945440	LIFETIME SEAL
12	50621398	O-RING
13	31914099	PISTON VALVE
14	80671373	PISTON
15	80671473	DISC
16	51104698	CIRCLIP
17	80457473	CLUTCH PLATE OUTER
18	80465373	CLUTCH PLATE INNER
19	00968943	COMPRESSION SPRING
20	80603673	COMPRESSION SPRING
21	00998041	QUADRING
22	00998039	SUPPORT RING
23	80527773	QUADRING
24	80527673	SUPPORTING RING
25	50216998	O-RING
26	75724773	PROTECTIVE PLUG
27	80671573	RING GEAR
28	80671673	END COVER
29	80464573	ROLLER
30	80611073	SPACER
31	73068744	O-RING
32	30775299	TAPBOLT
33	31339799	SCREW
34	33989899	WASHER
35	80671773	DRIVE SHAFT
36	80671873	PLANETARY CARRIER
37	80671973	PLANETARY ASSY.
38	80672073	IDLE
39	80672173	DRIVE SHAFT
40	80672273	SPACER
41	80672373	RING
42	36050899	BEARING
43	36044899	BALL BEARING
44	80672473	FLANGE
47	00958367	O-RING
48	665798	O-RING
49	80614773	VALVE
50	33972899	SEAL RING
51	34247099	CIRCLIP
52	80672573	SUPPORTING DISC
100	80672673	BEARING CAP
101	80672773	JOURNAL
102	36140999	BEARING
103	34267099	CIRCLIP 100X
104	34254599	CIRCLIP 45X
105	35056899	FITTING
106	00988990	SHAFT SEAL
107	32512599	THREADED PIN
108	00953289	SEAL PLATE
