Demag 30780499

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
30780499, 030780499, 0030780499

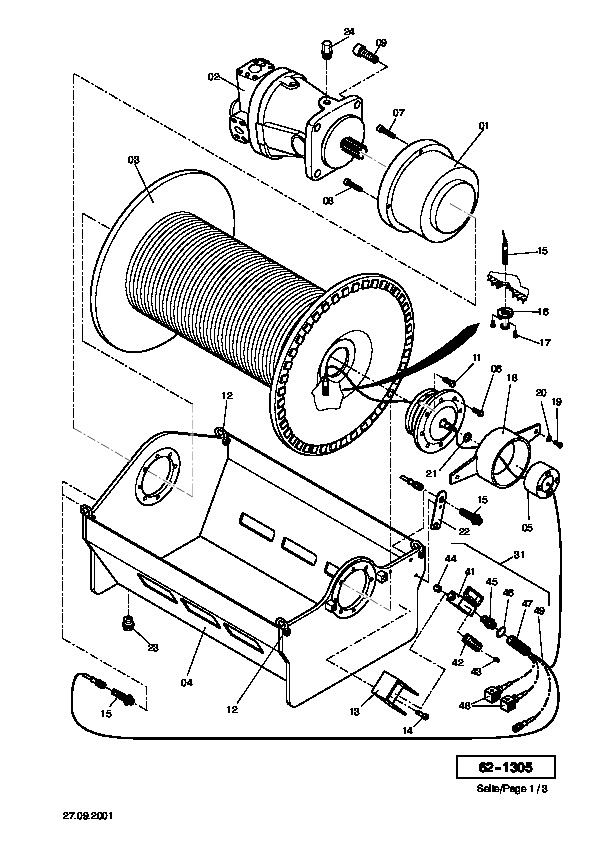

Parts for Demag CC 2800, Figure 62-1305:
Part Number 30780499: SCREW

Pos nr	Part number	Description
	63587840	CABLE 4 POL
-	10110012	WINCH, ASSY.
3	10110112	ROPE DRUM
4	10110312	WINCH FRAME
5	51553740	INSULATION SHEET
6	30761299	SCREW
7	31931199	SCREW EF51283398
8	31933599	SCREW
9	50033398	BOLT
11	30760299	SCREW
12	00067312	CLEVIS
13	10167012	HOUSING
14	31925699	HEXSOCK SCREW
15	46161640	SWITCH
16	67785340	PLATE
17	31922599	HEXSOCK SCREW M 6
18	10167212	HOUSING
19	30780499	SCREW
20	34069799	WASHER
21	36681099	RING
22	10511912	SHEET
23	34998299	SCREW
24	00112012	SCREW PLUG/BREATHER
31	13003112	SOCKET, ASSY.CONSIST OF FIG 41-49
41	00062112	SOCKET HOUSING, LO-POL. WITH CAP
42	00062312	PLUG INSERT, 10-POL.
43	32495440	ENCODER
44	438598	SCREW PLUG
45	65417040	UNION
46	00061712	O-RING
48	65451040	CABLE
