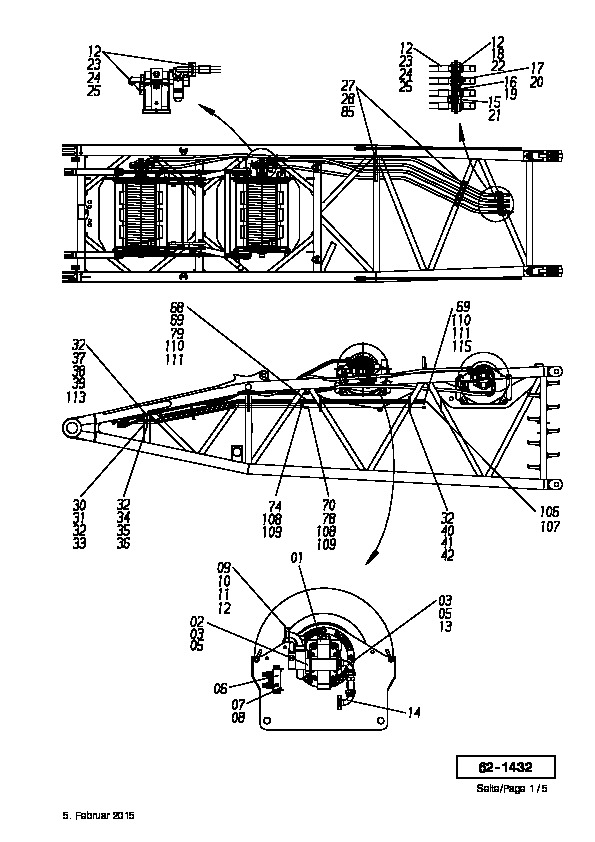

Demag 51068198 - D-PLATTE

Pos nr	Part number	Description	Weight in kg
	21581299	TUBE
	21581199	BOLT
	21549599	TUBE
	21582099	TUBE
1	00059212	LOWERING BRAKE VALVE
2	00055812	ADAPTER
3	31948599	SCREW
5	59257640	O-RING	0.01
6	88908740	CONTROL BLOCK AT 49066912
7	31913999	SCREW
8	34385499	SPRING WASHER
9	00055912	PIPE BEND
10	31929899	SCREW
11	34650299	DISK
12	59258140	SEAL
13	00056012	PIPE BEND
14	00056112	PIPE BEND
15	49079640	COUPLING SLEEVE
16	56707440	SLEEVE
17	55159040	SLEEVE
18	00056212	COUPLING SLEEVE
19	55158840	NUT
20	55159240	LOCK NUT
21	49079840	NUT
22	00057712	LOCK NUT
23	00663998	HALF FLANGE E-ST
24	31928899	HEXSOCK SCREW
25	34381799	LOCK WASHER
27	15112899	CLAMP
28	30861299	BOLT
30	53398599	CLAMP
31	30853499	LUMINIOUS SWITCH YELLOW ASSY.
32	50403098	NUT	0.01
33	51068198	D-PLATTE
34	53398899	HALF CLIP
35	30853599	SCREW
36	51185598	PLATE
37	50220198	SOCKET
38	51185898	PLATE
39	30854099	SCREW NEW#12526199
40	25357740	PLATE
42	24342040	RING
50	62101140	SOCKET
51	62101340	SOCKET
52	00048212	SOCKET
54	62112740	SOCKET
55	57646940	SOCKET
56	57640540	SOCKET	0.17
57	55161640	SOCKET
58	55137940	SOCKET
59	51101598	SOCKET
60	50275298	SUPPORT EF50275240
60	50954090	SOCKET
61	55130640	SOCKET	0.1
62	63439340	SOCKET
66	63442340	SOCKET
67	15364640	TEST UNION
69	57647140	FITTING
70	50955098	SOCKET
74	50981198	SOCKET
78	37185599	PLUG
79	37185999	PLUG
81	00652598	INLINE FILTER ASSY.
82	59213540	SOCKET
83	62179340	SOCKET	0.06
84	25569440	PISTON
85	53400899	RING
86	37134899	CHECK VALVE
87	60488640	SOCKET	0.2
88	57643840	SOCKET
89	55195840	SOCKET
90	55148040	SOCKET
91	62179640	SOCKET
92	55145440	SOCKET
93	55130140	SOCKET	0.13
94	57640340	SOCKET EF37290499	0.08
95	57639440	SOCKET
96	62112540	SOCKET
97	57644240	SOCKET
98	63454740	HYDRAULIC FITTING
99	50954598	SOCKET
100	37124399	OLIVE
101	37127699	UNION NUT
102	37124499	OLIVE
103	51001798	UNION NUT
104	37124799	OLIVE
105	37128090	UNION NUT
106	37124199	OLIVE
107	50980998	CAP NUT
108	37124299	OLIVE
109	37127599	UNION NUT
110	37124699	OLIVE
111	37127999	UNION NUT
112	50954498	SOCKET
113	41652040	ASSEMBLY RAIL
800	13101912	HOSE ASSY.
801	13102312	HOSE ASSY.
802	13109312	HOSE ASSY.
803	13109412	HOSE ASSY.
804	55364740	HOSE
