Demag 33220099 - FRAME

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-1794 (Demag AC 155 )
90-1795 (Demag AC 155 )
Demag (Demag AC )
62-1870 (Demag CC 2800 )
62-1905A (Demag CC 2800 )

Also known as:
33220099, 033220099, 0033220099

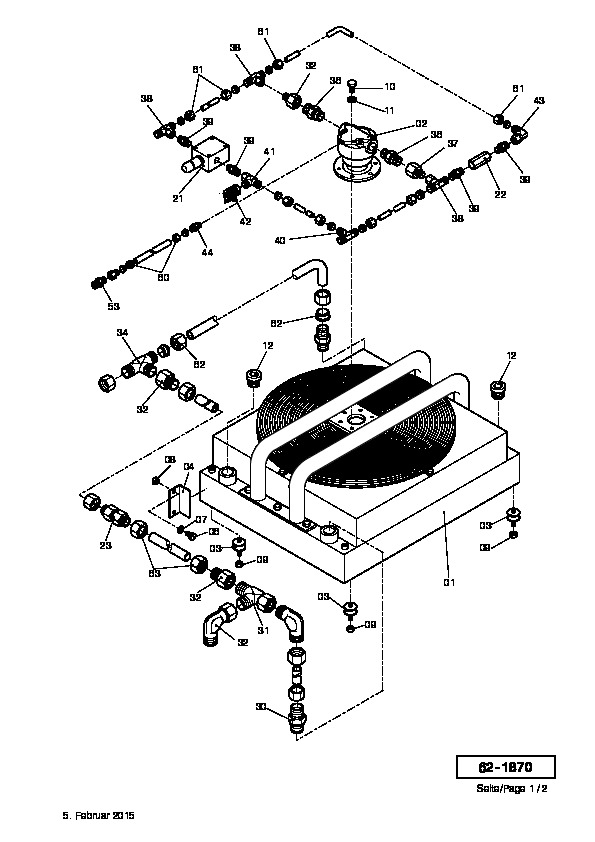

Parts for Demag CC 2800, Figure 62-1870:
Part Number 33220099: FRAME

Pos nr	Part number	Description	Weight in kg
1	10160212	OIL COOLER
2	41483440	HYDR.MOTOR
3	43786940	BUFFER
4	10225412	ANGLE
5	87029740	PLATE
6	30780799	VIS
7	34060599	DISC
8	33220099	FRAME
9	33219799	SCREW
10	87054140	WASHER
11	50491598	BOLT
12	17349540	PLUG
21	14581840	PRESSURE LIMIT VALVE
22	22647540	VALVE
23	37150899	VALVE
30	55140140	SOCKET
31	62101140	SOCKET
32	55130040	SOCKET
33	57640140	SOCKET
34	63431140	SOCKET
36	55167040	SOCKET
37	57640640	SOCKET
38	55145440	SOCKET
39	55145240	SOCKET NF 37031499
40	50955098	SOCKET
41	55144940	SOCKET	0.92
42	00652598	INLINE FILTER ASSY.
43	55130140	SOCKET	0.13
44	37358899	UNION
52	55163540	SOCKET
53	37369799	CABLE
60	37127199	UNION NUT
61	37127599	UNION NUT
62	37127999	UNION NUT
63	37128099	NUT
