Demag 31915699 - BOLT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-3327 (Demag AC 100 )
90-1340 (Demag AC 435 )
62-1235 (Demag CC 2800 )
90-0464 (Demag CC 2800 )
993-0563 (Demag CC 2800 )
993-0671 (Demag CC 2800 )

Also known as:
31915699, 031915699, 0031915699

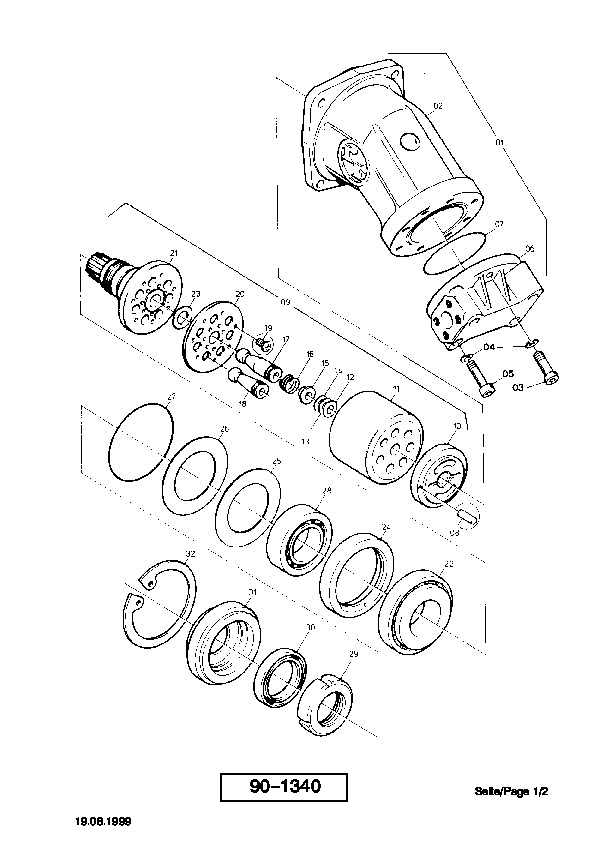

Parts for Demag AC 435, Figure 90-1340:
Part Number 31915699: BOLT

Pos nr	Part number	Description	Weight in kg
-	75369100	SCREW
1	32316140	MOTOR
2	75367100	ADJUSTING RING
3	31915699	BOLT
4	34385699	RING
5	31943999	SPRING
6	75367200	CONNECTOR PLATE
7	97219900	O-RING
8	34479199	PIN
9	75367000	WITHDRAWEL PLATE
10	75367300	DRIVING FLANGE WITH CUP
11	75367400	ROLLER BEARING
12	75367500	ADJUSTING DISK
13	75367600	ROLLER BEARING
14	75367700	SHIM RING
15	75367800	CIRCLIP
16	75367900	SHAFT SEAL
17	75368000	O-RING
18	75368100	SEALING FLANGE
19	75368200	CIRCLIP
20	75368300	SEAL KIT ASSY.
21	75368400	BRAKE,ASSY.
22	75368500	CARRIER
23	75368600	INT. TOOTHED DISK
24	75368700	EXT. TOOTHED DISK
25	75368800	SUPPORT RING
26	75368900	QUADRING
27	97105900	RING EF97105900
28	50416398	COMPRESSION SPRIG
29	99869500	SUPPORT RING
30	99266700	SEAL
31	75369000	RING
32	34267599	CIRCLIP	0.079
