Demag 75470800 - PLUG

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

90-1793 (Demag AC 155 )
90-1794 (Demag AC 155 )
90-1795 (Demag AC 155 )
Demag (Demag AC )

Also known as:
75470800, 075470800, 0075470800

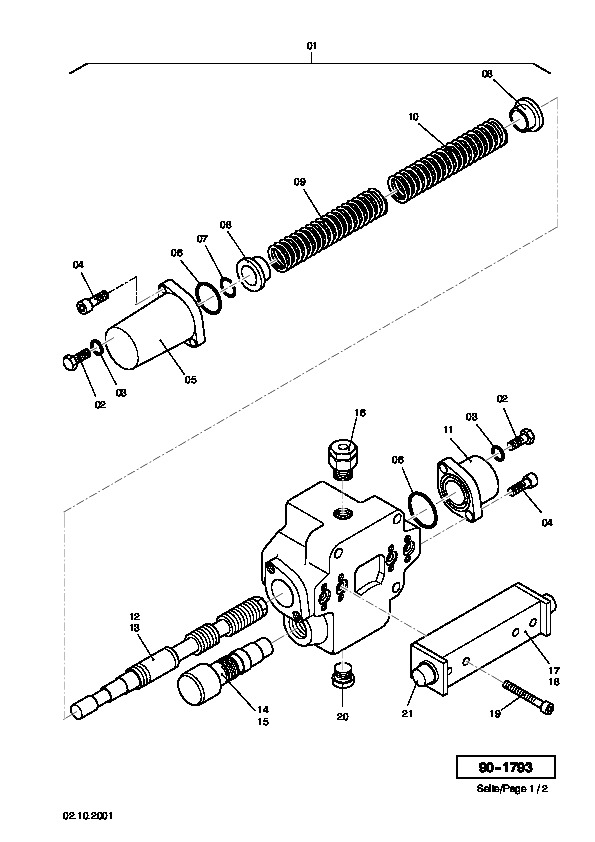

Parts for Demag AC 155, Figure 90-1793:
Part Number 75470800: PLUG

Pos nr	Part number	Description
1	51565340	CONTROL BLOCK, ASSY.
2	96124100	SCREW
3	33986199	RING
4	31941299	SCREW
5	43057273	COVER
6	50637398	0-RING
7	80662373	SNAP RING
8	80662473	SPRING PLATE
9	43057373	SPRING
10	43057473	SPRING
11	43057573	COVER
12	43057673	PISTON, ASSY.
13	80663273	SEAL KIT FOR PISTON AXLE
14	80662873	PRESSURE RELIEF VALVE, ASSY.
15	75371000	SEAL KIT
16	43057973	VALVE
17	43057773	VALVE
18	43057873	SEAL KIT
19	31923299	SCREW
20	75470800	PLUG
21	41209812	NON RETURN VALVE
