PLATE - Part 3194048 for Grove cranes
Fits these models: Grove GMK 6400

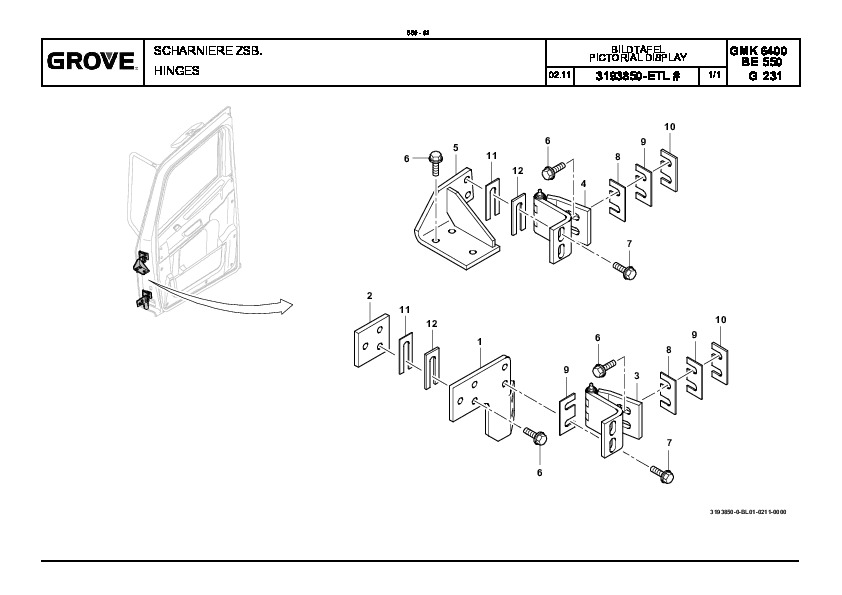

Figure 3193850-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3194048 | PLATE | |
| 2 | 3200310 | STRIKER PLATE | |
| 3 | 3193843 | HINGE RH DOWN ASSEMBLY | |
| 4 | 3193844 | HINGE RH OBOVE ASSEMBLY | |
| 5 | 3194050 | SUPPORT | |
| 6 | 3142753 | HEXAGON BOLT WITH FLANGE | 0.001 |
| 7 | 3142752 | HEXAGON BOLT WITH FLANGE | 0.001 |
| 8 | 3194022 | PLATE 1,5MM | 0.001 |
| 9 | 3194038 | PLATE 2MM | 0.001 |
| 10 | 3194039 | PLATE 3MM | 0.001 |
| 11 | 3194023 | PLATE 2 MM | |
| 12 | 3194040 | PLATE 3MM | 0.001 |
