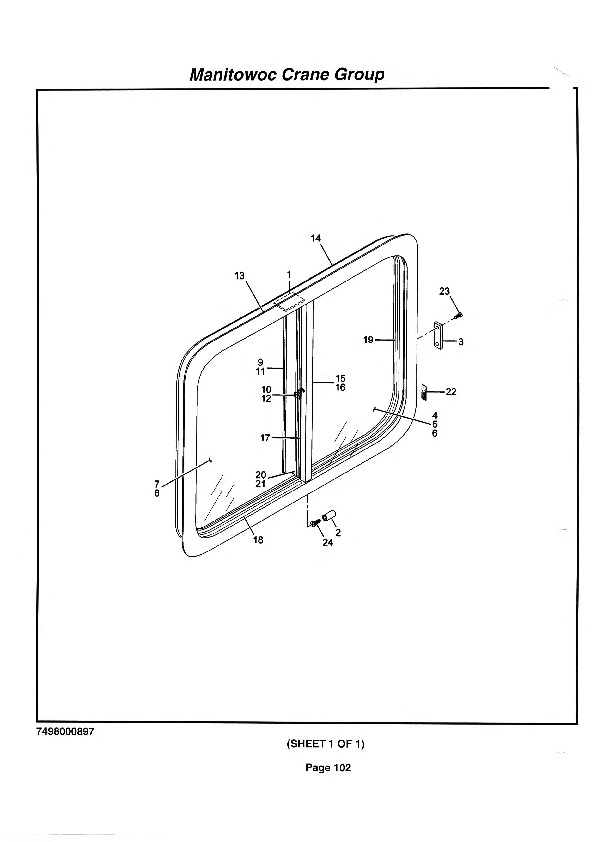

Parts for Grove RT 540E, Figure 7498000897:
Part Number 9498100145: BRACKET, RAIL
Part Number 9498100145: BRACKET, RAIL
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 9498100145 | BRACKET, RAIL | |
| 2 | 9498100121 | RETAINER, KEEPER | |
| 3 | 9498100122 | NUT | |
| 4 | 9498100191 | GLASS ASSEMBLY | |
| 5 | 9498100192 | GLASS | 6.294 |
| 6 | 9498100193 | GLAZING, PVC | |
| 7 | 9498100194 | GLASS ASSEMBLY | |
| 8 | 9498100195 | GLASS | 6.294 |
| 9 | 9498100196 | RAIL | |
| 10 | 9498100156 | SPRING | |
| 12 | 9498100155 | LOCK | |
| 13 | 9498100197 | FRAME | |
| 14 | 9498100198 | INNERLINER | |
| 15 | 9498100199 | RAIL | |
| 17 | 9498100200 | SEAL | |
| 18 | 9498100201 | TRIM | |
| 19 | 9498100202 | TRIM | |
| 20 | 9498100203 | CHANNEL | |
| 21 | 9498100204 | CHANNEL | |
| 22 | 9498100206 | TAPE | |
| 23 | 9498100135 | SCREW | |
| 24 | 9498100167 | SCREW, PLASTIC |
