Demag 31931199 - SCREW EF51283398

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
31931199, 031931199, 0031931199

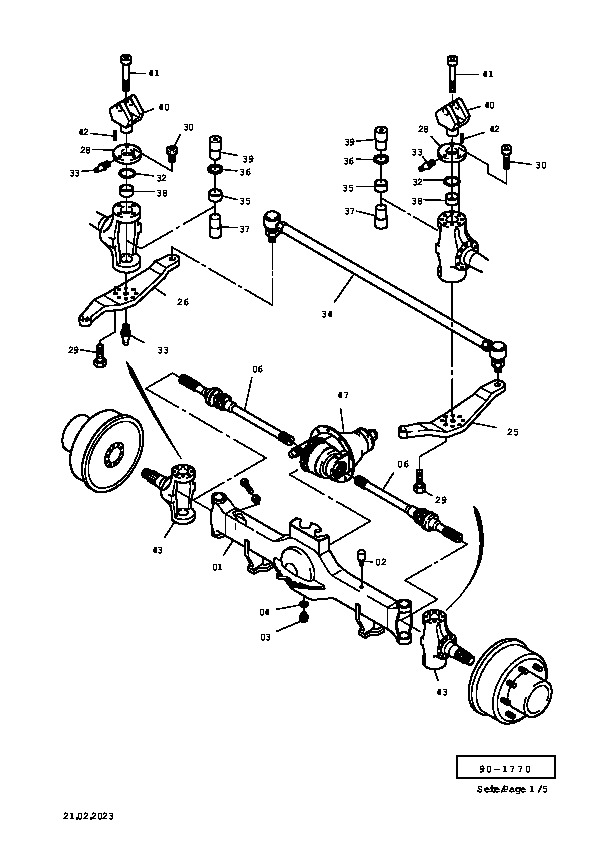

Parts for Demag AC 155, Figure 90-1770:
Part Number 31931199: SCREW EF51283398

Pos nr	Part number	Description	Weight in kg
-	78016373	STOP WASHER	0.24
0	55106240	STEERING DRIVE AXE, ASSY.
1	78047373	AXLE HOUSING
2	76109373	BREATHER EF77106000
4	31339699	SCREW
5	33971499	GASKET RING	0.01
6	78047573	JOINT SHAFT
7	51141098	SEAL RING	0.04
7	50542098	SHAFT SEAL	0.04
8	50021398	SNAP RING	0.02
9	50019198	NEEDLE BEARING
10	99741500	NUT
11	35036299	SCREW
13	95734000	INSIDE RING
14	95733900	BEARING
15	36316799	BEARING
16	674998	SEAL EF99450000
17	50020098	SHAFT SEAL EF 50163898
19	77237173	WHEEL HUB EF77992473	25
20	96572900	WHEEL STUD
23	78047973	BRAKE DRUM
24	32027199	SCREW
25	78048073	LEVER].H.
26	78048173	TRACK LEVER LEFT
28	77104700	COVER
29	30761599	HEXAGON SCREW
30	31930799	CYLINDER BOLT
32	36712299	O-RING
33	35056299	GREASE NIPPLE	0.01
34	76320273	CROSSTIE EF77104900	13.8
35	77052300	BUSHING BRONZE
36	96571900	DISC EF95671900
37	77985873	STEER.KNUCKLE BOLT	2.22
38	77134600	BUSHING	0.52
39	77105100	STEER.KNUCKLE BOLT
40	77228400	S UPPOZT
41	31931199	SCREW EF51283398
42	34525699	PIN
43	78048273	STEERING KNUCKLE
47	40113612	AXLE DRIVE ASSY
51	30723399	HEXAGON SCREW
52	16063099	DISC
53	32414640	SWITCH
54	30454812	SHIFT PIN
