Demag 31931199 - SCREW EF51283398

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
31931199, 031931199, 0031931199

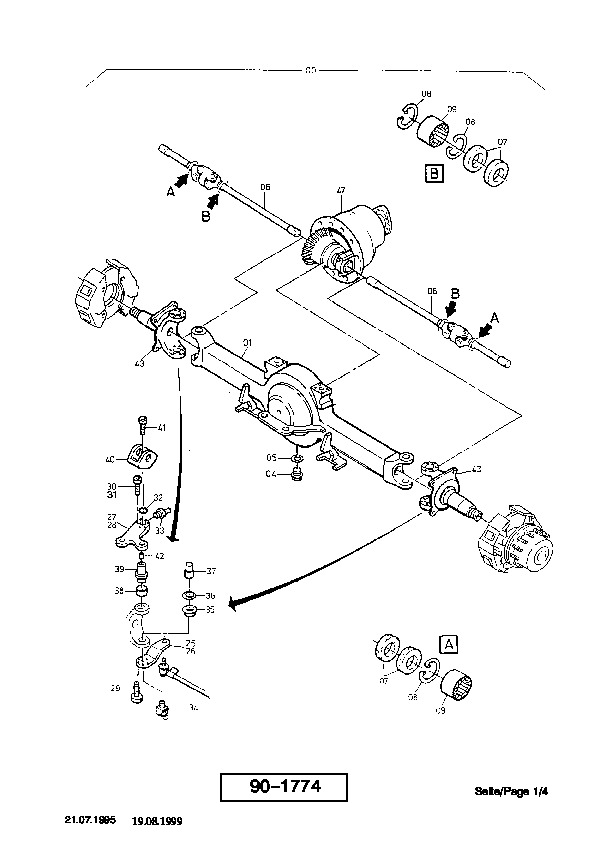

Parts for Demag AC 155, Figure 90-1774:
Part Number 31931199: SCREW EF51283398

Pos nr	Part number	Description	Weight in kg
	31338699	SCREW PLUG
	34008699	RING
-	78016373	STOP WASHER	0.24
-	76109373	BREATHER EF77106000
0	55173340	STEERING DRIVE AXLE, ASSY.
1	78056773	AXLE HOUSING
4	31339699	SCREW
5	33971499	GASKET RING	0.01
6	78056973	SHAFT
6	78056873	JOINT SHAFT
7	51141098	SEAL RING	0.04
7	50542098	SHAFT SEAL	0.04
8	50021398	SNAP RING	0.02
9	50019198	NEEDLE BEARING
10	99741500	NUT
11	35036299	SCREW
13	95734000	INSIDE RING
14	95733900	BEARING
15	36316799	BEARING
16	674998	SEAL EF99450000
17	50020098	SHAFT SEAL EF 50163898
19	77237173	WHEEL HUB EF77992473	25
20	96572900	WHEEL STUD
23	77992573	BRAKE DRUM
24	32027199	SCREW
25	78057073	LEVER
26	78057173	LEVER R.H.
27	78057273	STEERING LEVER
28	77104700	COVER
29	30761599	HEXAGON SCREW
30	31930799	CYLINDER BOLT
31	32040799	BOLT
32	36712299	O-RING
33	35056299	GREASE NIPPLE	0.01
34	76170973	STEERING TRAC ROD E-ST
35	77052300	BUSHING BRONZE
36	96571900	DISC EF95671900
37	77985873	STEER.KNUCKLE BOLT	2.22
38	77134600	BUSHING	0.52
39	77105100	STEER.KNUCKLE BOLT
40	77228400	S UPPOZT
41	31931199	SCREW EF51283398
42	34525699	PIN
43	78048273	STEERING KNUCKLE
48	77252473	POL WHEEL
